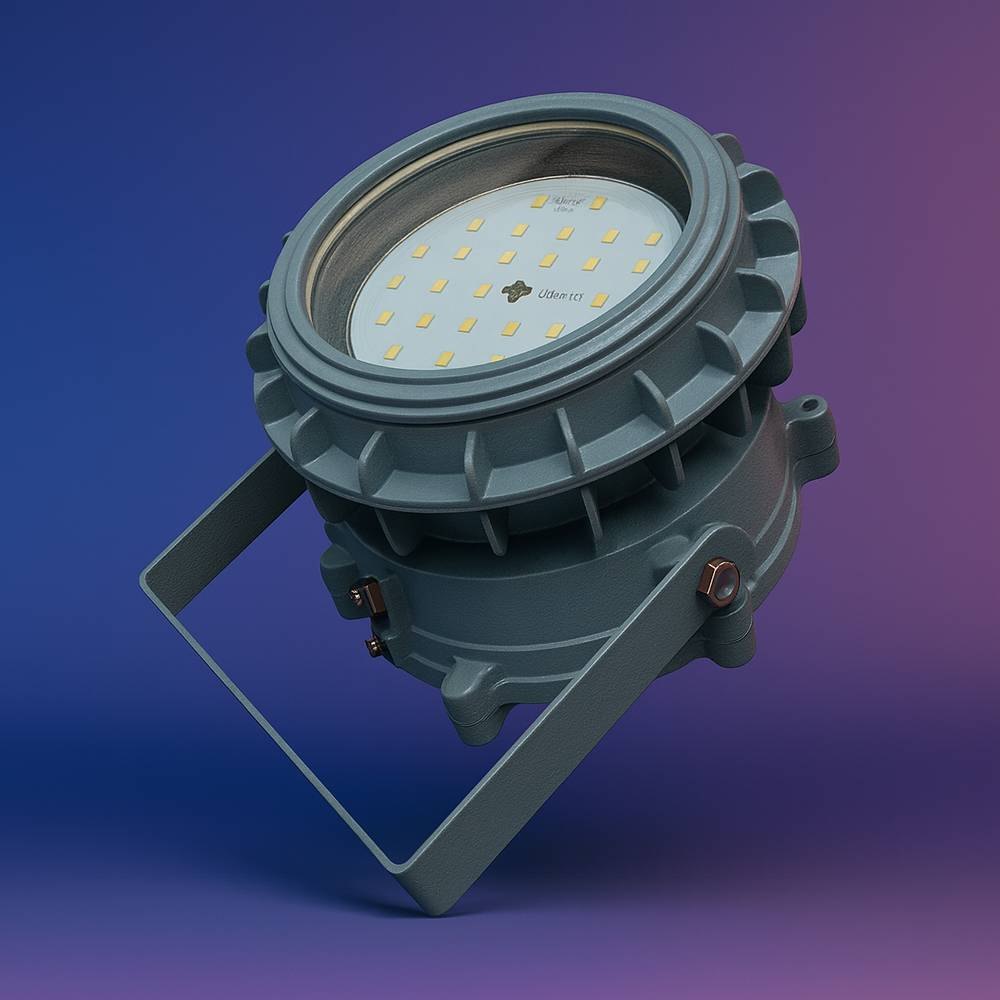

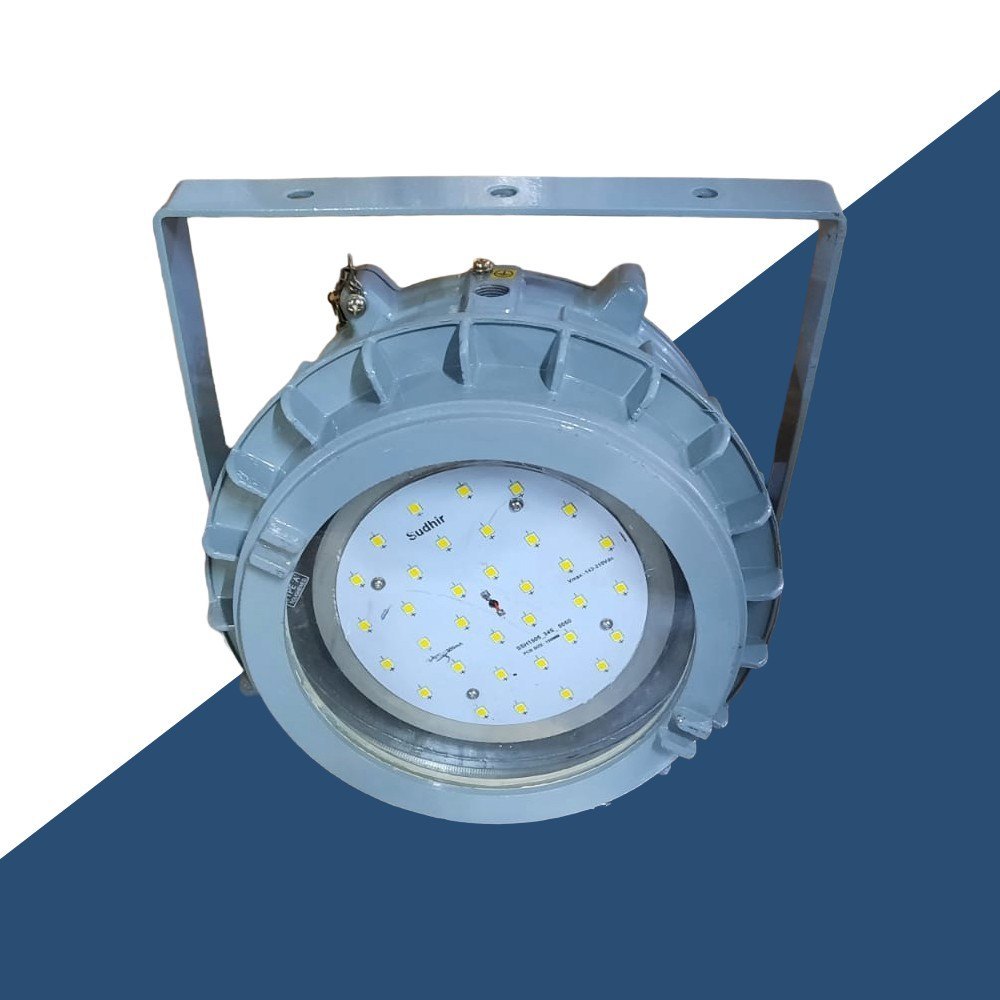

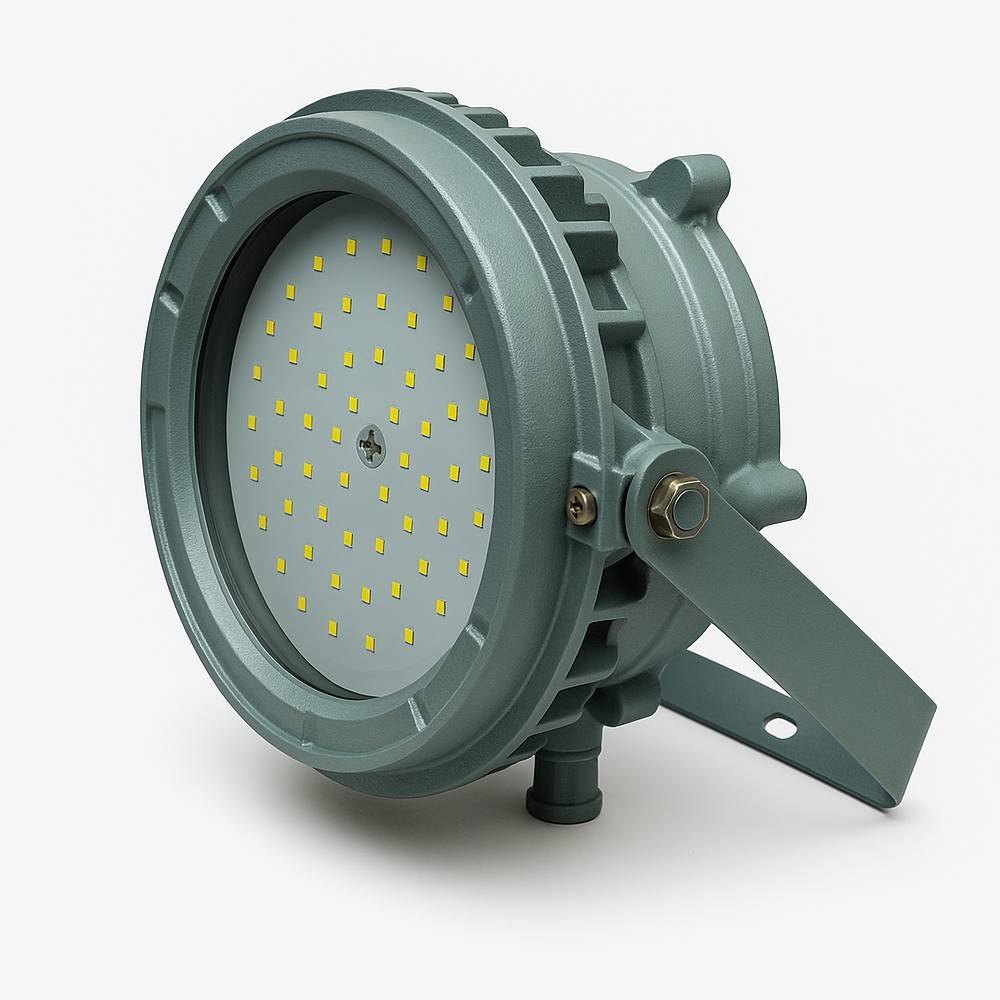

Flameproof Light Fittings / Flood Light

Name: Flameproof Light Fittings / Flood Light
Brand: QANDS SERVICES AND TECHNOLOGIES LLP
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Flameproof Light Fittings / Flood Light Specification

Power Rating
150W / 200W

Product Type
Flameproof Light Fittings

Protection Class
Ex db IIC T6 Gb / Ex tb IIIC T85 C Db/Dc

Protection Mode
Flameproof (Ex d), Weatherproof

Usage
Industrial

Installation Options
Adjustable Bracket Mounting / Wall Mounted

Response Time
Instant Seconds

Function
Hazardous Area Flood Lighting

Warranty
Not Applicable

Protection Level
IP66

Frequency (MHz)
Not Applicable Hertz (HZ)

Rated Voltage
240 V AC Volt (V)

Usage & Applications
Oil & Gas, Petrochemical, Chemical, Offshore, Marine, Power Plants, Industrial

Cable Type
Armoured / Unarmoured

Height
180 Millimeter (mm)

Operating Temperature
70 C Celsius (oC)

Weight
10 Kilograms (kg)

Display Type
LED

Phase
Single Phase

Conductor
Copper

Material
Die Cast Aluminium Alloy

Rated Current
0.83 A (150W) / 1.11 A Ampere (amp)

Frequency
50 Hertz (HZ)

Features
Flameproof, Weatherproof, High Efficiency, 10kV Surge Protection, Corrosion Resistant

Flameproof Light Fittings / Flood Light Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1000 Units Per Month

Delivery Time
7 Days

About Flameproof Light Fittings / Flood Light

Product Description

Illuminate hazardous industrial environments with confidence using the Sudhir Flameproof LED Flood Light Fitting (CAT No. WG/1240). Designed for superior performance in explosive atmospheres, this heavy-duty LED flood light combines robust flameproof protection with high-efficiency illumination, making it an ideal solution for demanding industrial applications.
Manufactured with a die-cast aluminium alloy enclosure and finished with durable epoxy powder coating, this explosion-proof flood light is engineered to withstand harsh weather conditions and corrosive industrial environments. Certified for Ex db IIC T6 Gb and IP66, it is suitable for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas.
Available in 150W and 200W models, the fixture delivers 100+ lumens per watt, excellent colour rendering, and reliable illumination while reducing energy consumption. It also features 10 kV surge protection, heat-resistant toughened glass, stainless steel hardware, and premium LED components from globally recognized manufacturers.

Key Features

Genuine Sudhir Flameproof LED Flood Light

Certified Ex db IIC T6 Gb hazardous area protection

Suitable for Zone 1, Zone 2, Zone 21 & Zone 22

IP66 weatherproof enclosure

Heavy-duty Die Cast Aluminium Alloy housing

Heat-resistant toughened flat glass

High luminous efficacy 100 lm/W

Available in 150W & 200W

Wide beam angle options 60, 90 & 120

Input voltage 140270V AC

Power Factor 0.95

10 kV Surge Protection Device (SPD)

Stainless steel hardware for corrosion resistance

Internal & external earthing provision

M20 / " NPT cable entries

Premium LEDs from Citizen, Osram, Bridgelux or equivalent

BIS-approved LED driver

Long service life with low maintenance

Engineered for Hazardous Environments

These flameproof flood light fittings are purpose-built for usage in hazardous and heavy-duty industrial locations. Their die-cast aluminium alloy construction provides maximum resilience against harsh chemicals, corrosion, and extreme weather, conforming to international safety standards like Ex db IIC T6 Gb. Applications range from chemical plants to marine installations and offshore platforms.

Robust Performance & Efficiency

Equipped with cutting-edge LEDs and advanced optics, these fittings offer instant illumination with minimal energy loss. High efficiency and surge protection up to 10kV ensure reliable operation during voltage fluctuations. Rated current options (0.83A for 150W or 1.11A for 200W) and an operating temperature up to 70C make them suitable for critical power plant and industrial settings.

Simple Installation & Versatility

The flameproof light fittings provide flexible installation choices, including adjustable bracket or wall-mounting, and compatibility with both armoured and unarmoured copper cables. This adaptability makes them ideal for diverse applications, whether you're retrofitting existing setups or installing in new locations, all while maintaining rigorous safety standards.

FAQ's of Flameproof Light Fittings / Flood Light:

Q: How are flameproof flood light fittings installed in hazardous areas?

A: These lights can be installed using adjustable brackets or directly wall-mounted, making them suitable for a variety of hazardous locations. They support connections with both armoured and unarmoured copper cables, following safety compliance for Ex d and weatherproof requirements.

Q: What makes these flood lights ideal for industrial applications?

A: Designed with die-cast aluminium alloy and featuring IP66-rated flameproof and weatherproof protection, these lights ensure reliability in environments like oil & gas, petrochemical, chemical, offshore, and power plant facilities. Their robust build resists corrosion, high temperatures (up to 70C), and severe weather.

Q: When should I choose flameproof lighting solutions?

A: Flameproof light fittings are essential when operating in areas where explosive gases, chemicals, or dust may be present-such as refineries, chemical plants, or offshore rigs. Their certified protection classes minimize the risk of ignition in sensitive zones.

Q: Where are these LED flood lights most commonly used?

A: These flood lights are widely deployed in oil & gas refineries, petrochemical plants, marine vessels, offshore platforms, and various industrial complexes where there's a necessity for both high-efficiency lighting and stringent safety measures.

Q: What benefits do these flameproof lights offer over standard lighting?

A: They provide instant LED illumination, high efficiency, resistance to corrosion and weather, and 10kV surge protection. Their flameproof design ensures safety in volatile environments, while features like quick response time and durability reduce maintenance requirements.

Q: How does the protection class Ex db IIC T6 Gb ensure safety?

A: This certification means the light fitting is tested to withstand and contain internal explosions without igniting surrounding hazardous gases, making it safe for use in environments with flammable substances and dust, adhering to global industrial safety standards.
