FlameProof Lighting Linear Luminaire with LED GRP

Name: FlameProof Lighting Linear Luminaire with LED GRP
Brand: QANDS SERVICES AND TECHNOLOGIES LLP
Price: 28700.0 INR
Availability: InStock

Price 28700.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

FlameProof Lighting Linear Luminaire with LED GRP Specification

Power Rating
18W-50W (depending on model)

Product Type
FlameProof Lighting Linear Luminaire with LED GRP

Protection Class
IP66 / IP67

Protection Mode
Ex db eb ib op is IIC T4 Gb, Ex tb op is IIIC T100 C Db

Usage
Industrial

Installation Options
Ceiling Mounted, Wall Mounted, Pole Mounted

Response Time
Instant Seconds

Warranty
Not Applicable

Function
Hazardous Area Illumination

Protection Level
IK10 Impact Protection

Rated Voltage
100 240 V AC / 110 250 V DC Volt (V)

Usage & Applications
Hazardous Areas, Oil & Gas, Chemical Plants, Petrochemical, Offshore Platforms, Marine, Pharmaceutical, Power Plants

Frequency (MHz)
50 60 Hz Hertz (HZ)

Height
18.45 cm Centimeter (cm)

Cable Type
Finely Stranded / Solid Cable

Operating Temperature
-40 C to +60 C Celsius (oC)

Weight
4.4 kg 8 kg Kilograms (kg)

Phase
Single Phase

Display Type
LED Linear Luminaire

Features
High Efficiency LED, IP66/IP67, IK10, ATEX & IECEx Certified, Long Life, DALI Optional, Energy Saving

Rated Current
As Per Model Ampere (amp)

Frequency
50 60 Hz Hertz (HZ)

Conductor
Spring Clamp Terminal, Max. 6 mm Solid / 4 mm Stranded

Material
Glass Fibre Reinforced Polyester Resin (GRP)

FlameProof Lighting Linear Luminaire with LED GRP Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About FlameProof Lighting Linear Luminaire with LED GRP

Product Description

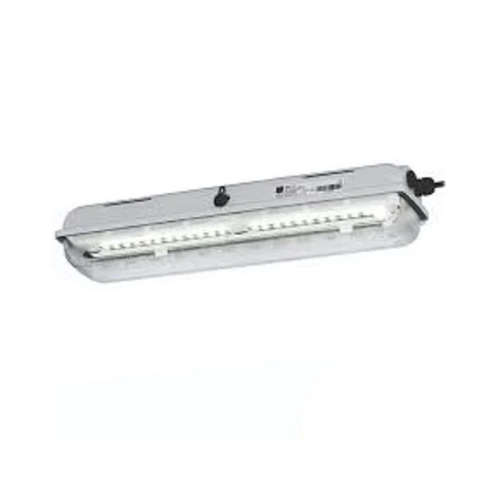

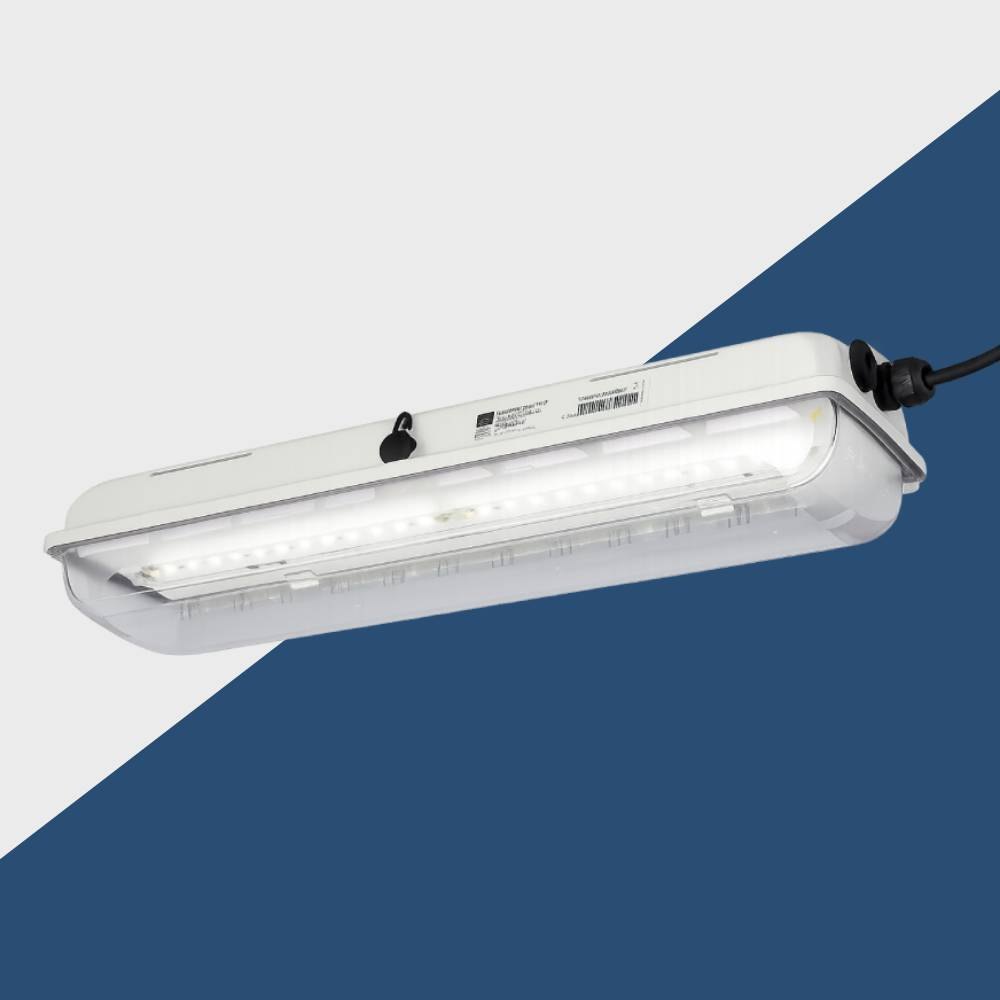

The R. STAHL EXLUX Series 6002/4 Flameproof LED Linear Luminaire is a premium explosion-proof lighting solution designed for hazardous industrial environments where safety, durability, and energy efficiency are critical. Engineered for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas, this LED luminaire is certified to ATEX, IECEx, and PESO standards, making it suitable for global industrial applications.
Built with a glass fibre reinforced polyester resin enclosure, the luminaire offers outstanding resistance to corrosion, impact, chemicals, and harsh weather conditions. With IP66/IP67 ingress protection and IK10 impact resistance, it performs reliably in demanding environments such as offshore platforms, oil & gas plants, refineries, chemical processing facilities, pharmaceutical industries, power plants, marine installations, and manufacturing units.
The Series 6002/4 utilizes advanced LED technology, delivering high luminous efficacy up to 168 lm/W while maintaining 90% of its initial luminous flux even after 100,000 operating hours. Available in multiple wattages ranging from 18W to 50W, it provides excellent illumination for mounting heights up to 10 meters. Optional DALI control and addressable emergency lighting support enable intelligent lighting management and monitoring.
Designed for industrial reliability and low maintenance, the EXLUX linear luminaire ensures maximum energy savings, long service life, and superior performance in hazardous locations.

Key Features

ATEX, IECEx & PESO Certified Explosion Proof LED Luminaire

Suitable for Zone 1, Zone 2, Zone 21 & Zone 22 hazardous areas

High-efficiency LED technology with luminous efficacy up to 168 lm/W

Up to 100,000 hours service life with 90% lumen maintenance

Available in 18W, 22W, 35W, 42W, 49W & 50W configurations

IP66/IP67 dustproof and waterproof protection

IK10 high-impact resistant enclosure

Glass fibre reinforced polyester resin housing

Clear and translucent cover options available

4000K, 5000K & 6500K colour temperature options

Wide operating voltage: 100240V AC / 110250V DC (variant dependent)

50/60 Hz operation

Optional DALI lighting control

Optional addressable emergency lighting interface

Excellent corrosion and chemical resistance

Suitable for indoor and outdoor industrial applications

Easy wall, ceiling and pole mounting options

Designed for Oil & Gas, Petrochemical, Marine, Chemical, Power and Pharmaceutical industries

Superior Safety and Reliability

Engineered for hazardous locations, the FlameProof Linear Luminaire features multiple explosion protection modes (Ex db, eb, ib, op is IIC T4 Gb, Ex tb op is IIIC T100C Db) ensuring reliable operation in the most demanding environments. Its robust GRP housing provides high resistance to impact and corrosion, making it ideal for challenging industrial settings.

Versatile Installation Options

Designed to fit various application needs, the luminaire can be ceiling, wall, or pole mounted, adapting seamlessly to different workspace layouts. Compatible with finely stranded or solid cable up to 6 mm2 and offering spring clamp terminals, installation is straightforward, minimising downtime during replacement or new setups.

Efficiency and Longevity

Featuring high-efficiency LED technology, the luminaire delivers instant illumination while consuming less energy, resulting in lower operational costs and extended lamp life. It can withstand operating temperatures from -40C to +60C, making it suitable for indoor and outdoor environments with extreme weather or temperature fluctuations.

FAQ's of FlameProof Lighting Linear Luminaire with LED GRP:

Q: What makes the FlameProof Lighting Linear Luminaire suitable for hazardous areas?

A: This luminaire is certified to ATEX and IECEx standards with protection modes including Ex db, eb, ib, and op is, specifically for explosive gas and dust environments (zones 1, 2, 21, and 22). Its robust GRP construction and IP66/IP67 rating provide exceptional resistance to dust, water, and impact, ensuring safe operation in hazardous industrial locations.

Q: How can the FlameProof Luminaire be installed?

A: The product supports multiple mounting options: ceiling-mounted, wall-mounted, or pole-mounted. It is designed for easy integration using spring clamp terminals, and can accept both finely stranded or solid cable, accommodating a range of industrial installation preferences.

Q: Where is this luminaire commonly used?

A: The luminaire is widely used in hazardous and high-risk environments such as oil & gas facilities, chemical and petrochemical plants, offshore platforms, marine applications, pharmaceutical manufacturing, and power generation plants.

Q: What are the main benefits of using LED GRP luminaires over traditional lighting in industrial settings?

A: LED GRP luminaires offer high energy efficiency, long operational life, instant start response, and reduced maintenance compared to conventional lights. Their rugged construction and protective certifications further ensure safe, reliable performance in hazardous and demanding environments.

Q: When should I choose a luminaire with IP66/IP67 and IK10 ratings?

A: Luminaires with these ratings are ideal when exposure to water, dust, and high mechanical impacts is likely. IP66/IP67 ensures protection against strong water jets and immersion, while IK10 guarantees high impact resistance-essential for harsh industrial locations.

Q: How does the luminaire ensure electrical safety?

A: It operates at a rated voltage of 100-240V AC or 110-250V DC, with single-phase compatibility. Certified explosion protection and spring clamp terminals ensure safe wiring and operation in volatile environments, reducing the risk of electrical hazards.
