H2S Gas Leak Detector

Price 250.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

H2S Gas Leak Detector Specification

Classification
Explosion Proof Gas Detecto

Test Range
Varies by Sensor Configuration

Accuracy
3% Full Scale %

Material
Aluminium Alloy

Specimen Size
Not Applicable Inch (in)

Operating Temperature
-40 C to +80 C Celsius (oC)

Power
24 V DC Volt (v)

Number of Specimens
Single Sensor

Gas Pressure
Atmospheric Pressure PSI

Voltage
220-240 Volt (v)

Temperature
-40 C to +80 C Celsius (oC)

Display
LCD Display with Backlight

Capacity
Continuous Gas Monitoring Pcs/hr

Dimension (L*W*H)
136 176 110 Millimeter (mm)

Usage
Industrial Gas Detection

Color
Silver

Response Time
< 15 Seconds Seconds

Sensor
Electrochemical Cell

Humidity
5 99% RH

Weight
1.7 Kilograms (kg)

Test Material
Toxic Gas (H S)

Product Type
H S Gas Leak Detector

Power Supply
Electric

Application
Oil & Gas, Chemical, Petrochemical, Offshore, Refineries, Pharmaceutical Industries

Operate Method
Electric

Type
Electronic

Use
Fixed Gas Leak Detection

Test Medium
Hydrogen Sulphide (H S) Gas

Operating Voltage
24 V DC Volt (V)

Shell Material
Aluminium Alloy / Stainless Steel (SUS316)

Net Weight
3.4 Kilograms (kg)

Pedestal Size
2 Inch Pole Mount

Port Size
PF 3/4"

Operating Mode
Continuous Monitoring

H2S Gas Leak Detector Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1000 Units Per Month

Delivery Time
7 Days

About H2S Gas Leak Detector

Product Description

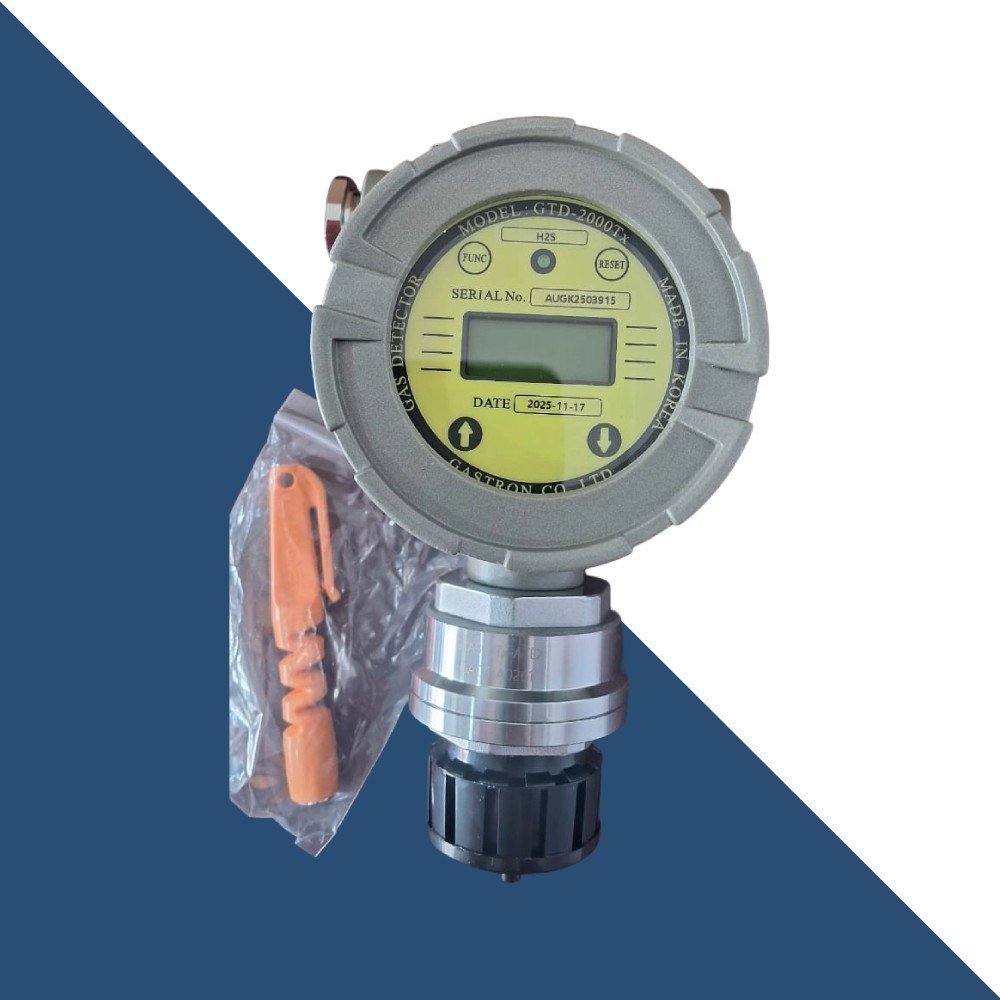

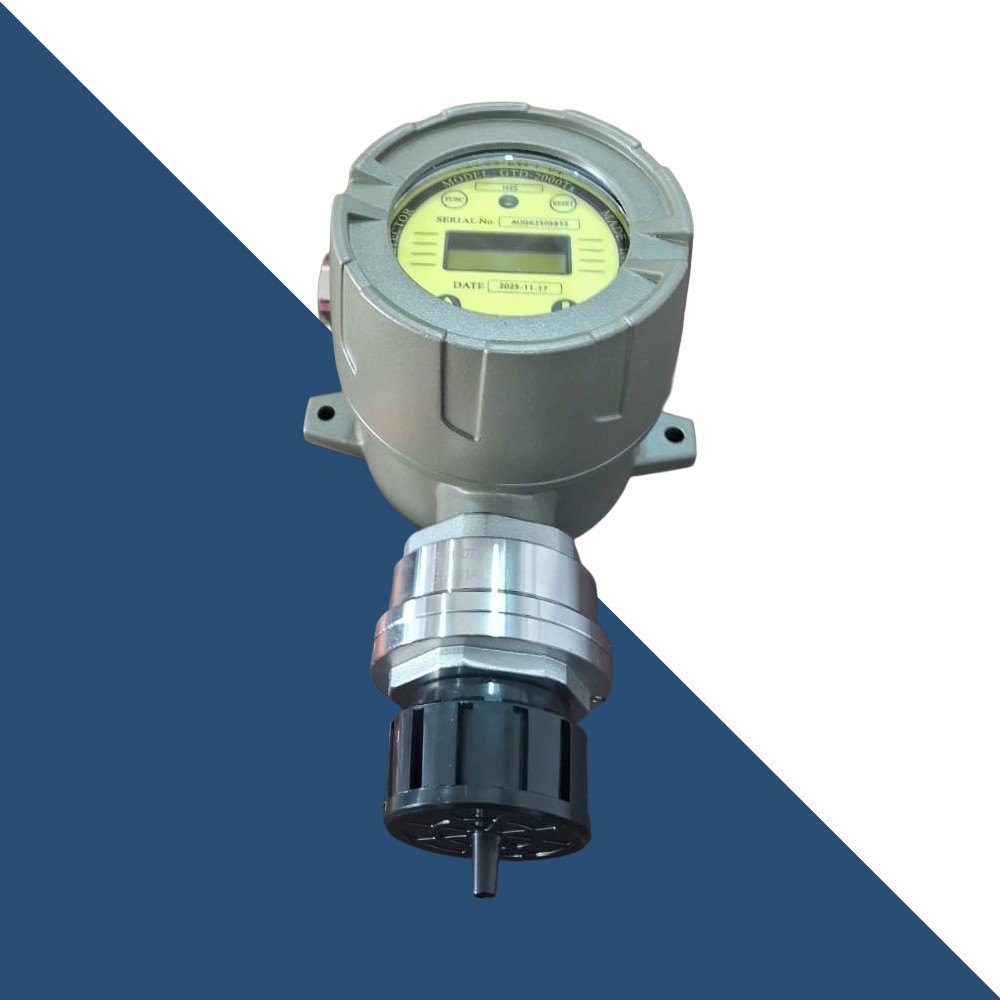

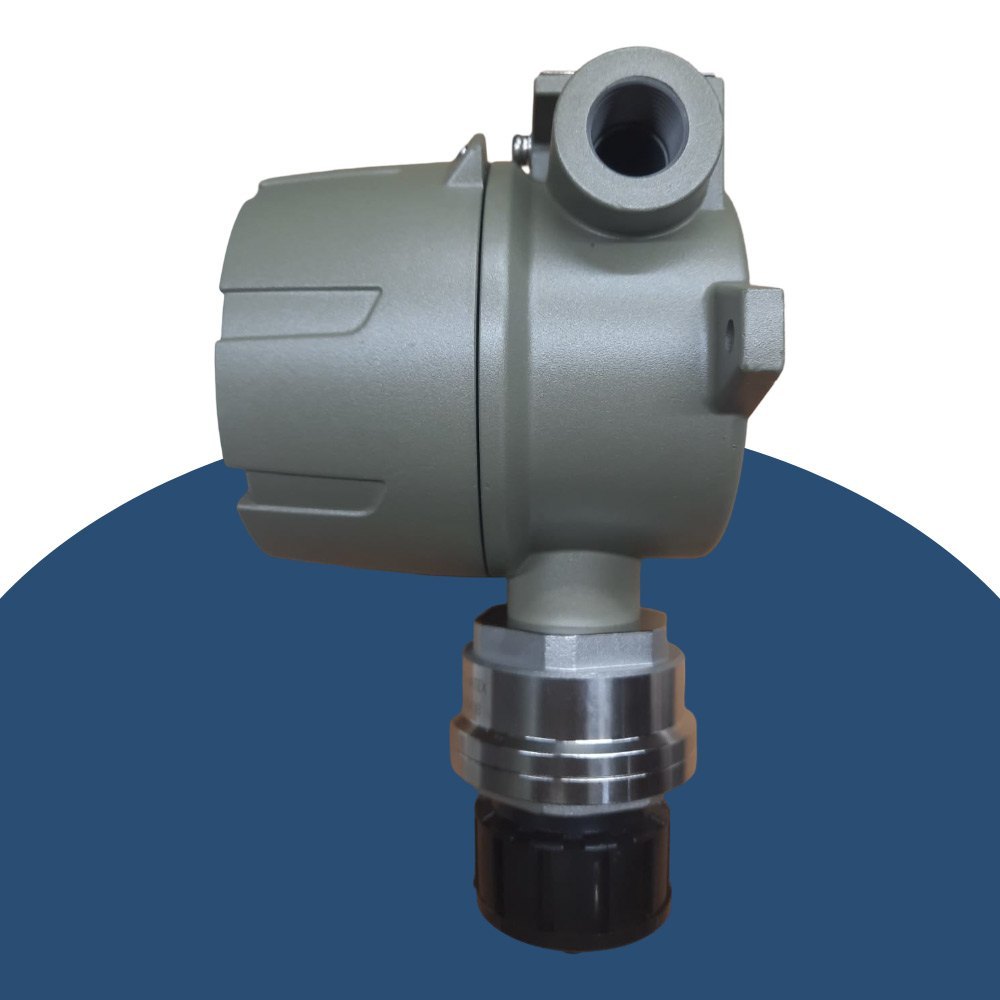

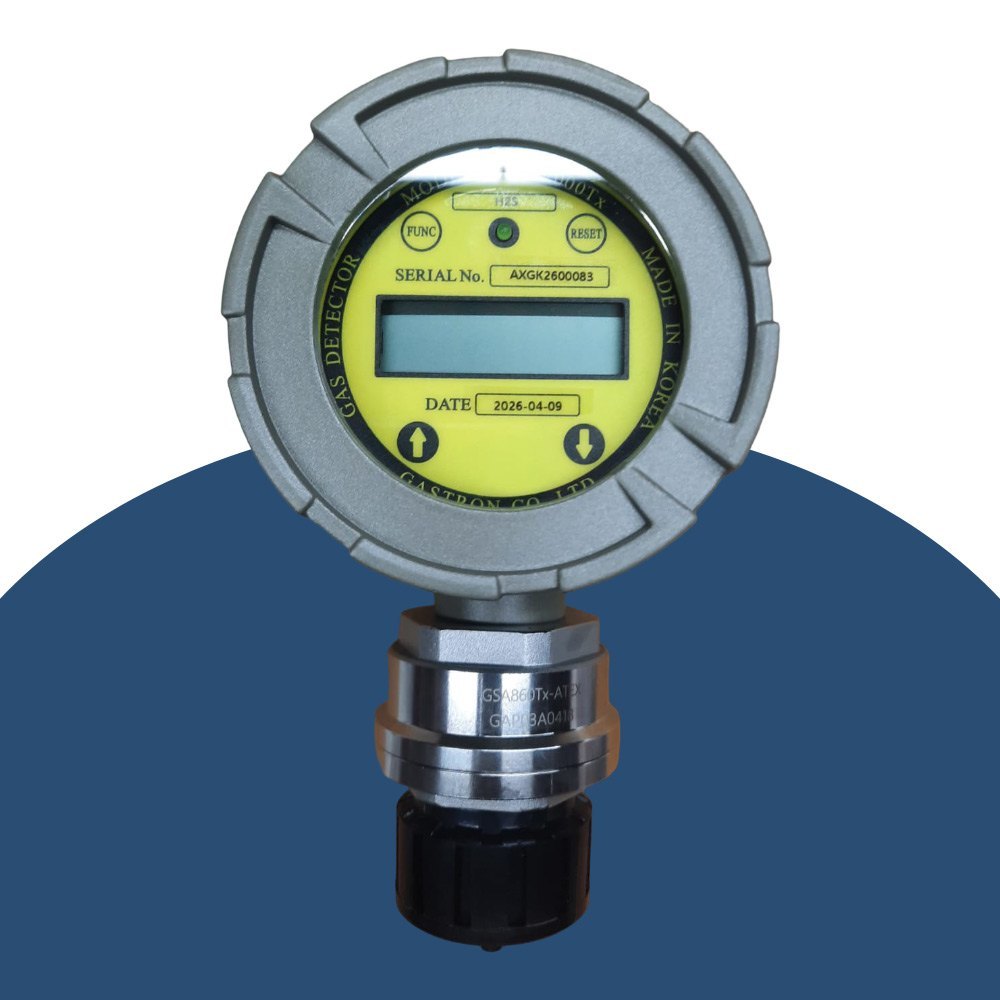

The GTD-2000Tx HS Gas Leak Detector is a smart explosion-proof fixed gas detector designed for reliable hydrogen sulfide (HS) monitoring in hazardous industrial environments. Equipped with HART communication, an LCD display, non-intrusive magnetic calibration, and an IP66-rated enclosure, it provides fast and accurate gas detection for oil & gas, petrochemical, chemical, offshore, and industrial safety applications. Certified with ATEX, IECEx, PESO, UL, and SIL2, it ensures dependable performance in demanding conditions.

Key Features

Smart diffusion technology for continuous HS gas monitoring.

Explosion-proof design for hazardous industrial areas.

Fast response time of less than 15 seconds (sensor dependent).

Bright LCD display with integrated backlight.

Supports HART 7 communication for easy system integration.

Non-intrusive magnetic calibration and maintenance.

High accuracy of 3% Full Scale.

Available in Aluminium Alloy or Stainless Steel (SUS316) housing.

Wide operating temperature range from -40C to +80C.

IP66-rated enclosure for superior dust and water protection.

Compatible with explosion-proof warning lights.

Supports both wall mounting and 2-inch pole mounting.

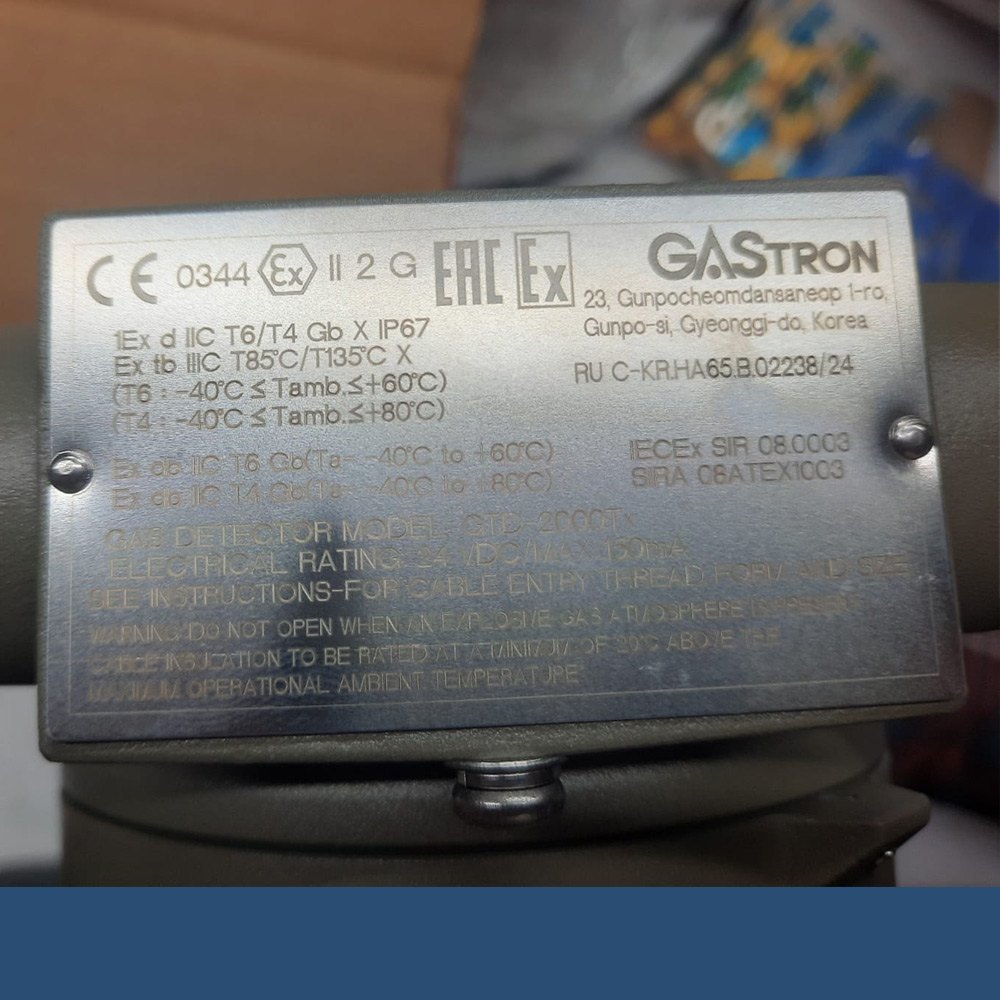

Certified by ATEX, IECEx, PESO, UL, SIL2, CE, FM, KCs, TIIS and other global standards.

Exceptional Detection Accuracy and Response

Engineered with a high-precision electrochemical cell sensor, the H2S Gas Leak Detector provides fast and reliable detection of toxic H2S gas. Boasting an accuracy within 3% of full scale and a response time of less than 15 seconds, the device safeguards industrial personnel and assets by offering timely alerts in hazardous environments.

Built for Tough Industrial Conditions

Encased in corrosion-resistant aluminium alloy or SUS316 stainless steel, this detector is purpose-built for the demanding requirements of oil & gas, chemical, petrochemical, offshore, and pharmaceutical industries. Its explosion-proof classification and operational resilience across extreme temperature and humidity ranges make it ideal for continuous, fixed monitoring in challenging industrial settings.

User-Friendly Operation and Maintenance

The detector features a clear LCD display with backlight, simplifying real-time status checks. Designed for fixed installation with a 2-inch pole mount and easy electrical wiring, it supports efficient maintenance and long-term deployment. The single-sensor configuration streamlines installation and minimizes downtime during calibration or service.

FAQ's of H2S Gas Leak Detector:

Q: How does the H2S Gas Leak Detector operate in hazardous industrial environments?

A: The detector utilizes an explosion-proof design with an aluminium alloy or SUS316 shell, ensuring safe operation in environments prone to hazardous gases. It continuously monitors for H2S leaks using an electrochemical sensor, providing rapid alerts via its LCD display.

Q: What process should be followed for installing the gas leak detector?

A: Installation involves mounting the device securely using the 2-inch pole mount, connecting it to a 24V DC electric power supply, and positioning it within the designated atmospheric pressure area where H2S monitoring is needed. Calibration should be conducted according to sensor configuration.

Q: When should the H2S Gas Leak Detector be used?

A: It is best employed as a fixed, continuous monitoring solution in industrial facilities like oil & gas, chemical, offshore, petrochemical, refinery, and pharmaceutical sites where hydrogen sulphide exposure is a risk.

Q: Where is the optimal placement for effective H2S detection?

A: Place the detector in areas prone to H2S leaks such as near pipelines, tanks, or process areas within the facility. It should be installed at the appropriate height and location to ensure early detection of gas, as determined by site risk assessments.

Q: What are the key benefits of using this H2S Gas Leak Detector?

A: It provides accurate, real-time monitoring with a response time of less than 15 seconds, ensuring rapid detection and minimizing hazards. Its robust explosion-proof design offers reliable performance, while the clear LCD display makes status checks straightforward.

Q: How is continuous operation ensured over varying conditions?

A: The device is engineered for continuous use, tolerating temperatures from -40C to +80C and humidity levels from 5% to 99% RH. This makes it suitable for year-round industrial operation and various climate conditions.

Q: What type of maintenance does the detector require during its use?

A: Periodic calibration and sensor checks are recommended to maintain optimum accuracy. The electronics, display, and mechanical mountings should be inspected regularly for signs of wear or damage, according to manufacturer guidelines.
