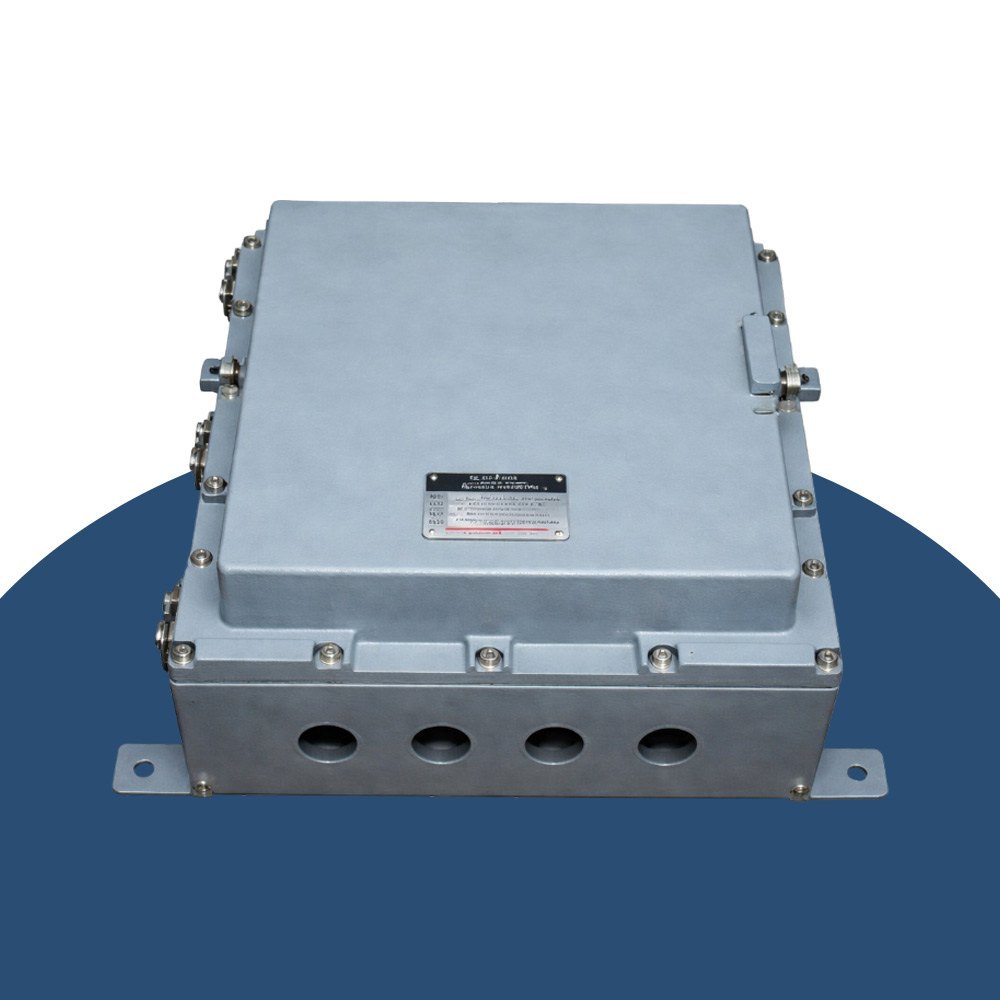

Send InquiryFlameproof Electrical Junction Box
Price 5000.0 INR/ Piece
MOQ : 20 Pieces
Flameproof Electrical Junction Box Specification
- Product Type
- Flameproof Electrical Junction Box
- Power Rating
- 415 v
- Protection Level
- IP66
- Surface Treatment
- Other
- External Size
- Model Dependent Millimeter (mm)
- Thickness
- Heavy Duty Industrial Construction Millimeter (mm)
- Paint Finishing
- Epoxy Powder Coated
- Accuracy
- Not applicable %
- Dimension (L*W*H)
- Multiple Sizes Available Inch (in)
- Rated Voltage
- 415 Volt (V)
- Weight
- Model Dependent Kilograms (kg)
- Usage & Applications
- Oil & Gas, Petrochemical, Chemical, Marine, Power Plants, Pharmaceutical, Hazardous Areas
- Cable Type
- Armoured & Unarmoured Industrial Cable
- Operating Temperature
- -20 C to +55 C Celsius (oC)
- Color
- Grey
- Warranty
- 1 Year
- Display Type
- Not Applicable
- Phase
- Three Phase
- Features
- Flameproof, IP66, Corrosion Resistant, Weatherproof, Custom Cable Entries
- Conductor
- Copper / Aluminium Busbar
- Material
- Die Cast Aluminium Alloy
- Frequency
- 50 Hertz (HZ)
- Rated Current
- As Per Terminal Configuration Volt (v)
Flameproof Electrical Junction Box Trade Information
- Minimum Order Quantity
- 20 Pieces
- Delivery Time
- 7 Days
About Flameproof Electrical Junction Box
Reliable Protection in Hazardous Locations
Designed for challenging industrial settings, this junction box features a flameproof body and is engineered to withstand the rigours of hazardous areas. The IP66 rating, along with corrosion and weather resistance, ensures reliable operation even in the most demanding environments, such as oil & gas or marine sectors.
Versatile Installation and Compatibility
Accommodating both armoured and unarmoured cables, this junction box supports flexible installations across a broad range of applications. It offers multiple cable entry options and is suitable for three-phase systems, with copper or aluminium busbar conductors available as per requirements.
Durable Construction and User Assurance
Constructed from die-cast aluminium alloy and coated with epoxy powder, the enclosure delivers superior durability under tough conditions. Supported by a 1-year warranty, users can trust its performance in critical infrastructure, backed by heavy-duty construction for added peace of mind.
FAQ's of Flameproof Electrical Junction Box:
Q: How does the flameproof junction box enhance safety in hazardous environments?
A: The box is constructed from die-cast aluminium alloy and designed to prevent internal sparks or flames from igniting external gases or vapours, ensuring optimal safety in hazardous areas such as oil & gas, petrochemical, and chemical industries.Q: What types of cables can be used with this junction box?
A: This junction box is compatible with both armoured and unarmoured industrial cables, offering flexibility for a wide range of electrical installations across various industrial sectors.Q: When should I choose this flameproof junction box over standard enclosures?
A: The flameproof junction box is ideal when operations are conducted in environments with potential exposure to flammable gases, vapours, or combustible dusts. It is specifically designed for hazardous areas such as marine facilities, power plants, and chemical processing plants.Q: Where can this flameproof junction box be installed?
A: Thanks to its IP66 rating and weather-resistant design, the junction box is suitable for both indoor and outdoor installations, particularly in hazardous or corrosive industrial environments.Q: What steps are involved in installing this junction box?
A: Installation should be performed by qualified personnel, following applicable regulations. The box accommodates custom cable entries, and allows sizing/terminal configuration adjustments based on the application's power and layout requirements.Q: How does the box's construction benefit long-term performance?
A: The die-cast aluminium alloy body, heavy-duty industrial construction, and epoxy powder coated finish ensure resistance to mechanical impacts, corrosion, and severe weather-guaranteeing a durable, reliable solution over time.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Explosion Proof Junction Box Category
Aluminium Flameproof Junction Box
Price 3500.0 INR / Unit
Minimum Order Quantity : 20 Units
Power Rating : Not Applicable
External Size : 100 mm Diameter 60 mm Depth Millimeter (mm)
Frequency : 50 Hz Hertz (HZ)
Cable Type : M20 / " NPT / Up to M25 Cable Gland
Flameproof Junction Box
Price 500.0 INR / Piece
Minimum Order Quantity : 100 Pieces
Power Rating : Not Applicable
External Size : Standard Millimeter (mm)
Frequency : 50/60 Hz Hertz (HZ)
Cable Type : Cable Gland / Plastic SemiGland Compatible

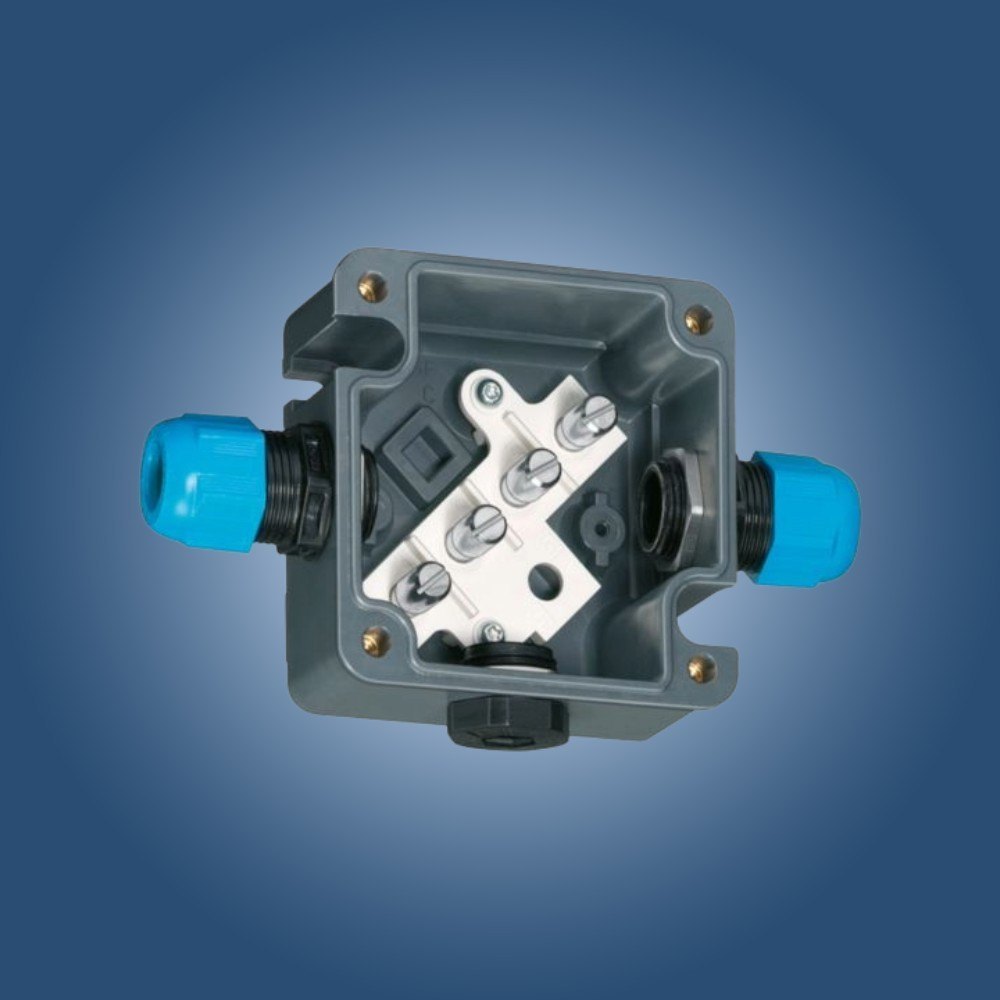

Explosion Proof Ex e Junction Box
