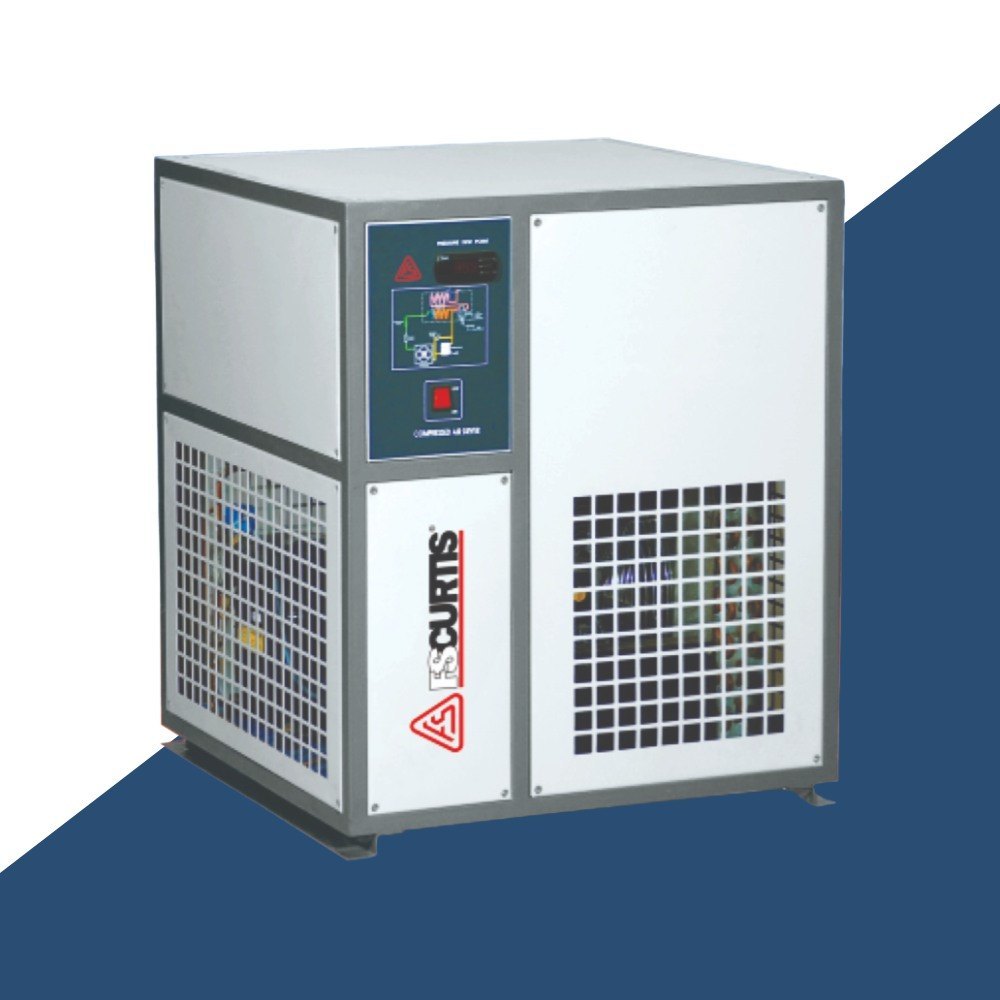

Refrigerated Air Dryer

Name: Refrigerated Air Dryer
Brand: QANDS SERVICES AND TECHNOLOGIES LLP
Price: 50000.0 INR
Availability: InStock

Price 50000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Refrigerated Air Dryer Specification

Air Flow Capacity
Varies by model (e.g., 20-1000 CFM or higher)

Power Mode
AC Power

Indoor Fan Input
Yes (Integrated)

Cooling Capacity
Rated for air dryer capacity, e.g., 1.5-9.2 kW (model dependent)

Outdoor Fan Input
N/A (Indoor Unit)

Running Current
Varies with capacity (typically 2-15 Amps)

Sensible control
Electronic/Automatic Control Panel

Compressor
Hermetic Refrigeration Compressor

Mounting
Floor Mounted

Refrigerant
R134a / R407c / R22 (as per model)

Power Consumption
Ranges from 0.4 kW - 6 kW (as per model)

Type Of Compressor
Reciprocating / Scroll (model dependent)

Temperature Control
Automatic

Dimension (L*W*H)
Depends on capacity (example: 700 x 600 x 800 mm)

Power Supply
Single phase / Three phase, depending on model

Filtration Grade
Pre-Filter & After Filter (optional)

Condition
New

Place of Origin
India

Type
Refrigerated Air Dryer

Cooling/Heating
Cooling

Capacity
Depends on Model (commonly ranges from 10 CFM to 1000+ CFM)

Power Source
Electric

Voltage
220V/380V, 50Hz/60Hz

Color
White with grey border and branding

Weight (kg)
Varies by capacity (commonly 40-120 kg)

Working Temperature
2C - 45C

Fan Speed
Fixed / Variable (model dependent)

Noise Level
Low (typically < 70 dB)

Energy Efficiency Rating
High

Remote Operated
Yes

Inlet Air Temperature
Maximum 55C

Application
Compressed Air Moisture Removal in Industrial Applications

Maximum Operating Pressure
16 bar

Drain Type
Automatic Electronic Drain Valve

Pressure Dew Point
+3C (standard)

Heat Exchanger Material
Copper-Aluminum/GI

Indicator
LED/LCD Display for Operation Status

Protection
Overload and High/Low Pressure Protection

Heat Exchanger Type
Brazed Plate / Shell & Tube

Refrigerated Air Dryer Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

Refrigerated Air Dryer About

Description

The CR Series 20-2000 CFM refrigerated air dryers from FS-Curtis are engineered to deliver reliable moisture removal from compressed air systems across a wide range of industrial applications. Designed for performance even under high ambient temperatures up to 45 C, these dryers ensure consistent dew point control and help protect downstream equipment and processes from water contamination.

Built with advanced refrigeration technology and user-friendly features, the CR Series is ideal for industries where dry, clean compressed air is essential including manufacturing, automotive, food & beverage, cement, and oil & gas sectors.

Efficient Moisture Removal for Industrial Applications

This refrigerated air dryer caters to a wide range of industrial applications, ensuring your compressed air system stays free from moisture. Its automatic electronic drain valve and high-quality heat exchangers provide consistent performance and low maintenance needs, while the protection systems guard against overload and pressure fluctuations. Whether you require moisture control for manufacturing, packaging, or laboratory use, this dryer is engineered for reliability and versatility.

Advanced Features for Easy Operation

With an integrated LED/LCD display for operation status, automatic temperature control, and sensible electronic/automatic control panels, managing your compressor's air quality has never been simpler. The hermetic refrigeration compressor operates quietly, and the system's high energy efficiency keeps running costs low. These features, combined with user-friendly design, make installation and operation hassle-free in any industrial setting.

FAQ's of Refrigerated Air Dryer:

Q: How does the refrigerated air dryer remove moisture from compressed air?

A: The dryer cools incoming compressed air using a copper-aluminum or GI heat exchanger, causing moisture to condense and separate as water. It then automatically drains this water via the electronic drain valve, ensuring only dry air continues through the system.

Q: What safety and protection features are included?

A: This unit is equipped with overload and high/low pressure protection to safeguard critical components. An LED/LCD display provides clear operational feedback, alerting users to any irregularities.

Q: When should the refrigerated air dryer be used in industrial settings?

A: It should be used whenever moisture-free compressed air is required, such as in manufacturing, paint spraying, food & beverage processing, and pneumatic tool operation. Consistent use helps prevent corrosion, contamination, and equipment failure.

Q: Where can the air dryer be installed and how is it mounted?

A: The unit is designed for indoor installation and is floor-mounted. Its compact footprint allows it to fit easily into most industrial compressor rooms or mechanical spaces.

Q: What is the benefit of the automatic electronic drain valve?

A: The automatic drain valve eliminates water build-up without manual intervention, reducing maintenance time and preventing operational interruptions due to accumulated moisture.

Q: How is the correct dryer capacity selected for a specific application?

A: Capacity selection depends on the required air flow (e.g., 20-1000+ CFM), operating pressure, and dew point needs. Refer to compressor output and system demand to choose the correct dryer model to align with your application.
