Double Compression Flame Proof Cable Glands

Send Inquiry

Request To Call Back

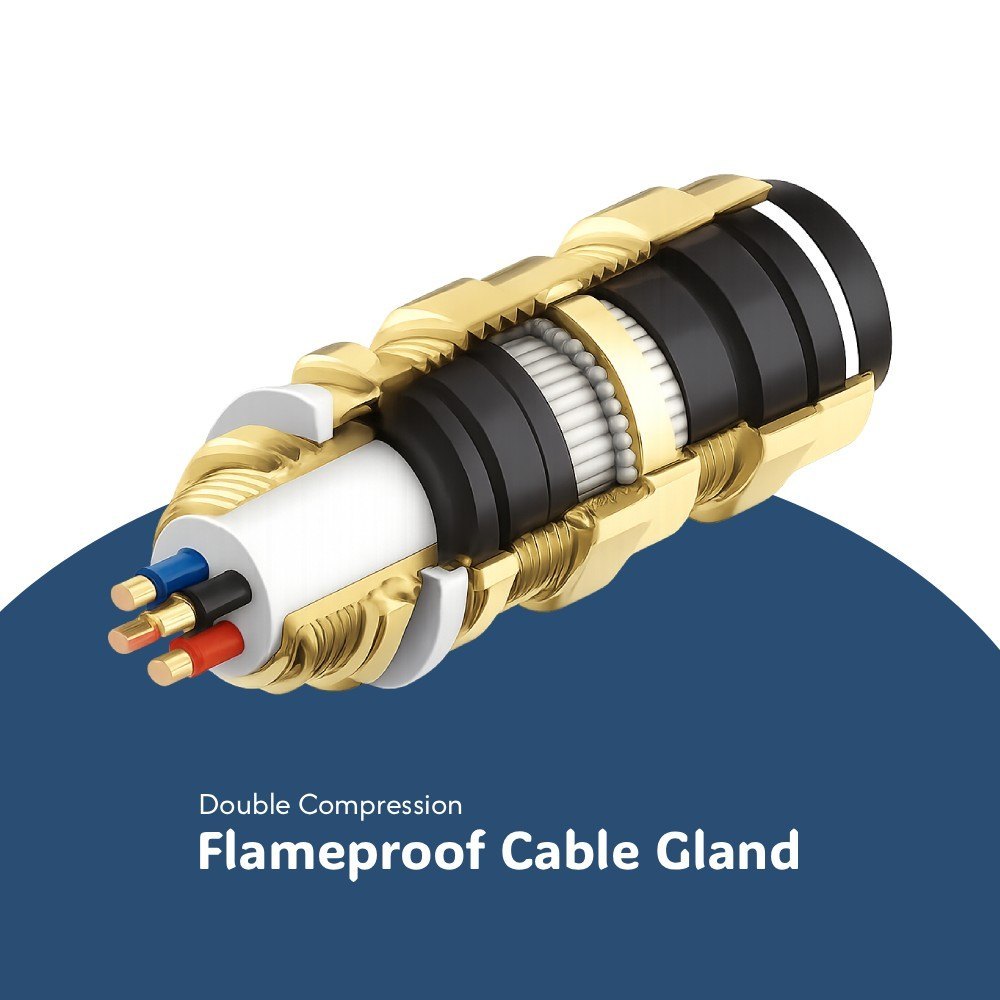

Double Compression Flame Proof Cable Glands

Name: Double Compression Flame Proof Cable Glands
Brand: QANDS SERVICES AND TECHNOLOGIES LLP
Price: 30.0 INR
Availability: InStock

Price 30.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Double Compression Flame Proof Cable Glands Specification

Number of Conductor
Multi-Core Compatible

Weight
Not Specified Grams (g)

Insulation
Neoprene Seal & Nylon Washer

Operating Temperature
-20 C to +110 C Celsius (oC)

Armored Material
Steel Wire Armour (SWA) / Steel Tape Armour (STA)

Features
Double Compression, Flameproof, Weatherproof, IP67, Corrosion Resistant, Armoured Cable Compatible

Core Number
Compatible with Multi-Core Cables

Rated Temperature
-20 C to +110 C Celsius (oC)

Install Type
Threaded

Cable Type
SWA (Single Wire Armour) / STA (Steel Tape Armour)

Locking Type
Double Compression

Conductor Type
Other

Diameter
16 mm to 88 mm Millimeter (mm)

Conductor Shape
Round

Tensile Strength
Not Specified Newtons per Millimetre Squared (N/mm2)

Dielectiric Strength
Not Applicable Newtons per Millimetre Squared (N/mm2)

Usage & Applications
Industrial Hazardous Areas

Impedance
Not Applicable Ampere (amp)

Core Material
Copper

Product Type
Double Compression Flame Proof Cable Glands

Power Rating
Not Applicable

Length
15 Millimeter (mm)

Insulation Material
Other

Application
Industrial

Conductor Material
Iron

Jacket Material
PE

Storage Temperature
-20 C to +110 C Celsius (oC)

Connector Color
Silver

Shield Material
Steel Armour (SWA / STA)

Rated Voltage
Not Applicable Ampere (A)

Jacket Color
Other

Dimension (L*W*H)
Varies by gland size Millimeter (mm)

Phase
Single Phase / Three Phase Compatible

Display Type
Not Applicable

Warranty
Not Applicable

Conductor
Armoured Cable Compatible

Frequency
Not Applicable Hertz (HZ)

Rated Current
Not Applicable Ampere (amp)

Material
Brass CW614N / Nickel Plated Brass / SS316L

Color
Metallic Silver

Size
16 mm to 88 mm

Double Compression Flame Proof Cable Glands Trade Information

Minimum Order Quantity
1000 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Double Compression Flame Proof Cable Glands About

Product Description

Ensure safe and reliable cable termination in hazardous industrial environments with the Double Compression Flameproof Cable Gland. Designed for both indoor and outdoor hazardous areas, this cable gland provides a flameproof seal on the cable inner sheath and an environmental seal on the outer sheath, ensuring maximum protection against dust, moisture, and explosive atmospheres.
Manufactured in Brass CW614N, Nickel Plated Brass, or SS316L Stainless Steel, the gland offers exceptional corrosion resistance, mechanical strength, and long service life. Its double compression design provides excellent cable retention while maintaining electrical continuity through the armour wire, making it ideal for SWA (Single Wire Armour) and STA (Steel Tape Armour) cables.
Certified with CIMFR and PESO approvals and manufactured according to EN/IEC 60079 standards, this cable gland is suitable for Zone 1 and Zone 2 hazardous locations where reliable flameproof cable entry is essential.

Key Features

Double Compression Flameproof & Weatherproof Cable Gland

Suitable for hazardous area installations

IP67 ingress protection against dust and water

Available in Brass, Nickel Plated Brass, and SS316L

Designed for SWA and STA armoured cables

Flameproof seal on inner sheath

Environmental seal on outer sheath

Excellent mechanical cable retention

Maintains electrical continuity through armour wire

Corrosion-resistant construction for long service life

Operating temperature from -20C to +110C

Available with Metric, NPT and ET threads

Optional accessories including shroud, lock nut, earth tag, serrated washer and ingress disc

Suitable for indoor and outdoor applications

Easy installation and low maintenance

Ultimate Protection for Hazardous Locations

Designed specifically for hazardous industrial settings, these double compression cable glands deliver exceptional flameproof and weatherproof performance. They feature a robust locking mechanism to ensure a secure fit on armored cables, providing peace of mind in environments where safety and reliability are critical.

Superior Material and Versatile Compatibility

Constructed from high-grade Brass, Nickel-Plated Brass, or SS316L, these cable glands resist corrosion and mechanical stress. They are compatible with SWA and STA armoured cables, supporting diameters from 16 mm to 88 mm and suitable for both single and three-phase power systems in industrial applications.

Sealing Technology and Ease of Installation

Incorporating double compression locking and neoprene seals, these glands maintain a tight, protective barrier against dust, moisture, and hazardous substances. Their threaded installation process is straightforward, fitting seamlessly into a variety of cable management systems.

FAQ's of Double Compression Flame Proof Cable Glands:

Q: How are double compression flame proof cable glands installed in industrial environments?

A: Installation involves threading the gland onto an appropriate entry point, then securing the cable using the double compression mechanism. The process creates tight seals with the neoprene washer and nylon gaskets, resulting in flameproof and weatherproof protection.

Q: What makes these cable glands suitable for hazardous industrial areas?

A: Their flameproof design, IP67 rating, robust materials, and double compression locking combine to prevent the ingress of dust, water, and hazardous gases, making them ideal for use in potentially explosive or dangerous settings.

Q: When should I select these glands over single compression types?

A: Double compression cable glands are appropriate when enhanced environmental sealing and mechanical strength are necessary, such as in areas exposed to frequent vibration, moisture, or hazardous substances.

Q: Where can these cable glands be used within industrial applications?

A: They are typically used in areas with armoured cables feeding equipment in hazardous or outdoor environments, including chemical plants, oil refineries, and other locations requiring flameproof cable protection.

Q: What is the advantage of the PE jacket and neoprene seal?

A: The PE jacket and neoprene seal provide high resistance to chemicals, weather extremes, and mechanical stress, extending the working life of the cable gland while maintaining effective insulation and safety.

Q: How do these glands accommodate various cable sizes and types?

A: With a diameter range from 16 mm to 88 mm and compatibility with both SWA and STA types, the design supports single or multi-core cables, accommodating a broad spectrum of industrial wiring needs.
