Wine Cork Pull Tester
Wine Cork Pull Tester
Wine Cork Pull Tester
Wine Cork Pull Tester
Wine Cork Pull Tester
Wine Cork Pull Tester

Wine Cork Pull Tester

Price 180000.0 INR/ Unit

MOQ : 1 Piece

Wine Cork Pull Tester Specification

  • Hardness
  • Cork Pull Strength Testing
  • Application
  • Wine Industry, Cork Testing, Packaging QC Laboratories
  • Features
  • Peak Hold, Overload Protection, Data Memory (1000 Readings), High/Low Set Points, USB/RS-232 Data Output, Backlit Display
  • Port Size
  • Not Applicable
  • Product Type
  • Wine Cork Pull Tester
  • Power Supply
  • Ni-MH Rechargeable Battery or AC Adapter
  • Material
  • MS
  • Operate Method
  • Manual Lever Operation
  • Color
  • Silver
  • Power
  • AC Adapter / Rechargeable Battery Ampere (amp)
  • Specimen Size
  • Standard Wine Bottles Meter (m)
  • Operating Voltage
  • 100 240 V AC Volt (V)
  • Number of Specimens
  • 1
  • Max Height
  • Standard Wine Bottle
  • Equipment Type
  • Wine Cork Pull Tester
  • Gas Pressure
  • Not Applicable N/m2
  • Response Time
  • Instant Seconds
  • Accuracy
  • 0.2% Full Scale mg
  • Measuring Range
  • 0 490 N Newton
  • Resolution
  • 0.1 N
  • Usage
  • Industrial / Laboratory
  • Capacity
  • 50 kgf Kg
  • Automation Grade
  • Manual
  • Display Type
  • Digital LCD with EL Backlight
  • Classification
  • Digital Force Testing Equipment
  • Voltage
  • 100 240 V Volt (v)
  • Interface Type
  • RS-232C, Digimatic & Analog Output
  • Test Range
  • 110 lbf
  • Humidity
  • Not Applicable
  • Temperature
  • Ambient Laboratory Temperature Celsius (oC)
  • Weight
  • 12 Kilograms (kg)
  • Frequency
  • 50/60 Hz Hertz (HZ)
  • Dimension (L*W*H)
  • 45 30 70 Centimeter (cm)
  • Mounting Type
  • Bench Top
  • Machine Weight
  • 12 Kilograms (kg)
  • Test Speed
  • Manual Lever Operation
  • Test Width
  • 30 Centimeter (cm)
  • Test Stroke
  • 60 mm
  • Control Mode
  • Manual


Wine Cork Pull Tester Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 1000 Pieces Per Month
  • Delivery Time
  • 7 Days


About Wine Cork Pull Tester

Product Description

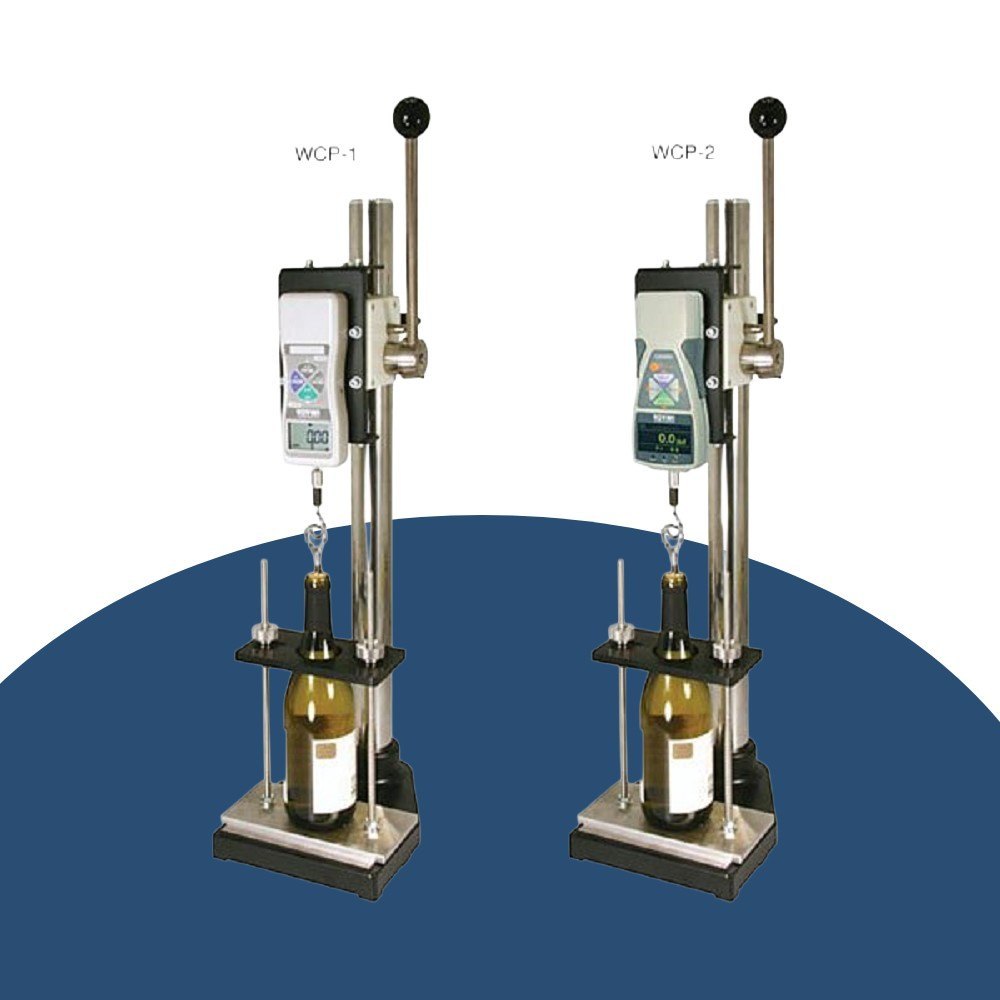

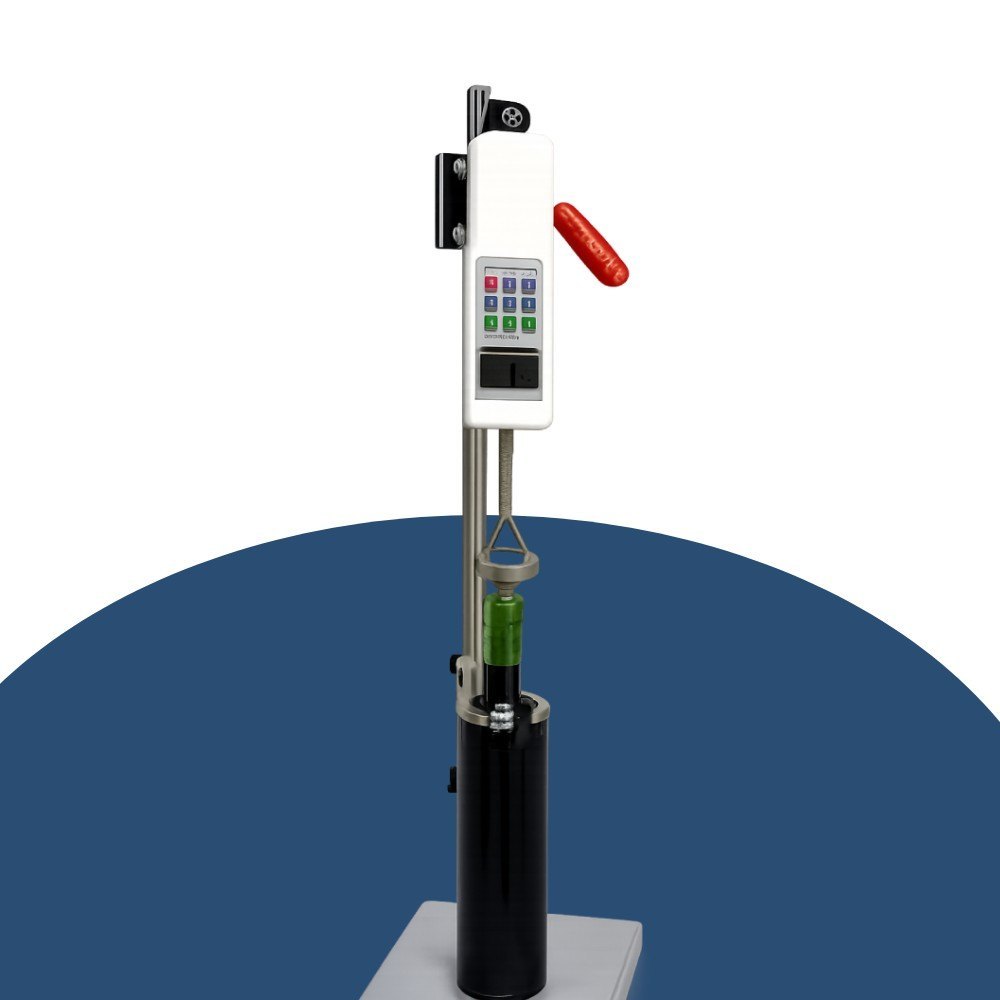

Wine Cork Pull Tester is a high-precision testing instrument designed to accurately measure the pull force required to remove corks from wine bottles. Built with a robust heavy-duty metal frame, this tester delivers reliable and repeatable test results for wineries, cork manufacturers, packaging laboratories, beverage quality control facilities, and research institutions.

Equipped with a digital force gauge, the tester offers clear force readings in multiple units including lbf, kgf, and Newton (N). Its rapid lever-action mechanism and stable bottle fixture enable quick bottle changeovers while maintaining excellent testing consistency. The instrument also supports RS-232C, Digimatic, and analog outputs, making it ideal for data collection, quality documentation, and production monitoring.

The optional SW-1 Data Acquisition Software allows users to log, analyze, and generate reports in Microsoft Excel, making this wine cork pull tester a complete solution for professional quality assurance and laboratory testing.


Key Features


  • Heavy-duty metal construction for long service life
  • Maximum load capacity of 110 lbf (50 kgf)
  • 2.3 inch (60 mm) stroke with rapid lever operation
  • Measures force in lbf, kgf, and Newton (N)
  • High-accuracy digital force gauge with peak value capture
  • Stable bottle holding fixture for repeatable testing
  • Push-button tare function for quick zero adjustment
  • Overload protection up to 200% Full Scale
  • Audible and visual overload indication
  • RS-232C, Digimatic, and analog output for data transfer
  • Operates on rechargeable Ni-MH batteries or AC adapter
  • EL backlit display for clear visibility in low-light environments
  • Programmable high/low setpoints with color-coded LED indicators
  • Multi-language operating menu
  • Stores up to 1,000 measurement records
  • Optional SW-1 software for Excel-based data acquisition and analysis



Advanced Features and Reliable Performance

The Wine Cork Pull Tester offers advanced features such as peak hold function, overload protection, and high/low set points to ensure accuracy and safety during testing. Its digital LCD with EL backlight and data memory for 1000 readings enable easy monitoring and advanced documentation. USB and RS-232 ports provide versatile data output options. This robust, silver-colored tester is ideal for both industrial and laboratory environments where precise cork strength testing is essential.


Efficient Quality Control in Cork and Wine Industries

This tester is tailored for use in wine industries, packaging QC labs, and cork manufacturing facilities, supporting standard wine bottle sizes for streamlined testing. Operated by a simple manual lever and powered via rechargeable battery or AC adapter, it offers consistent, accurate evaluations. The bench-top format and durable MS material construction ensure long-term, reliable use in quality control settings.

FAQ's of Wine Cork Pull Tester:


Q: How does the Wine Cork Pull Tester operate for cork strength testing?

A: Operation is manual lever-based. Place a standard wine bottle in the fixture, attach the cork puller, and activate the lever. The tester digitally records and displays the peak force required to extract the cork, ensuring precise measurements every time.

Q: What types of data output are available for quality analysis?

A: This device supports USB and RS-232C output, along with Digimatic and analog options. Data (up to 1000 test readings) can be quickly exported for further analysis, reporting, or quality control documentation.

Q: When should the Wine Cork Pull Tester be used in the production process?

A: It should be employed during quality assurance phases, especially after cork insertion and before product distribution. Regular testing helps wine makers and cork manufacturers ensure cork integrity and bottle sealing performance.

Q: Where is the Wine Cork Pull Tester typically installed or used?

A: Installation is on a sturdy laboratory or factory bench. This tester is suitable for quality control labs, wine packaging lines, cork manufacturing plants, and research facilities focused on wine bottle packaging.

Q: What is the specimen size and force range this tester accommodates?

A: It is designed for standard wine bottles, handling cork pull strengths from 0 to 110 lbf (0-490 N). The adjustable fixture allows fitting of most standard bottle types, making it adaptable for industry needs.

Q: What are the main benefits of using this Wine Cork Pull Tester for laboratories and manufacturers?

A: The tester ensures consistent, objective, and reproducible measurement of cork extraction forces. Features like peak hold, overload protection, and digital data memory streamline the QC process, reduce manual errors, and facilitate compliance with industry standards.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Testing Equipment Category

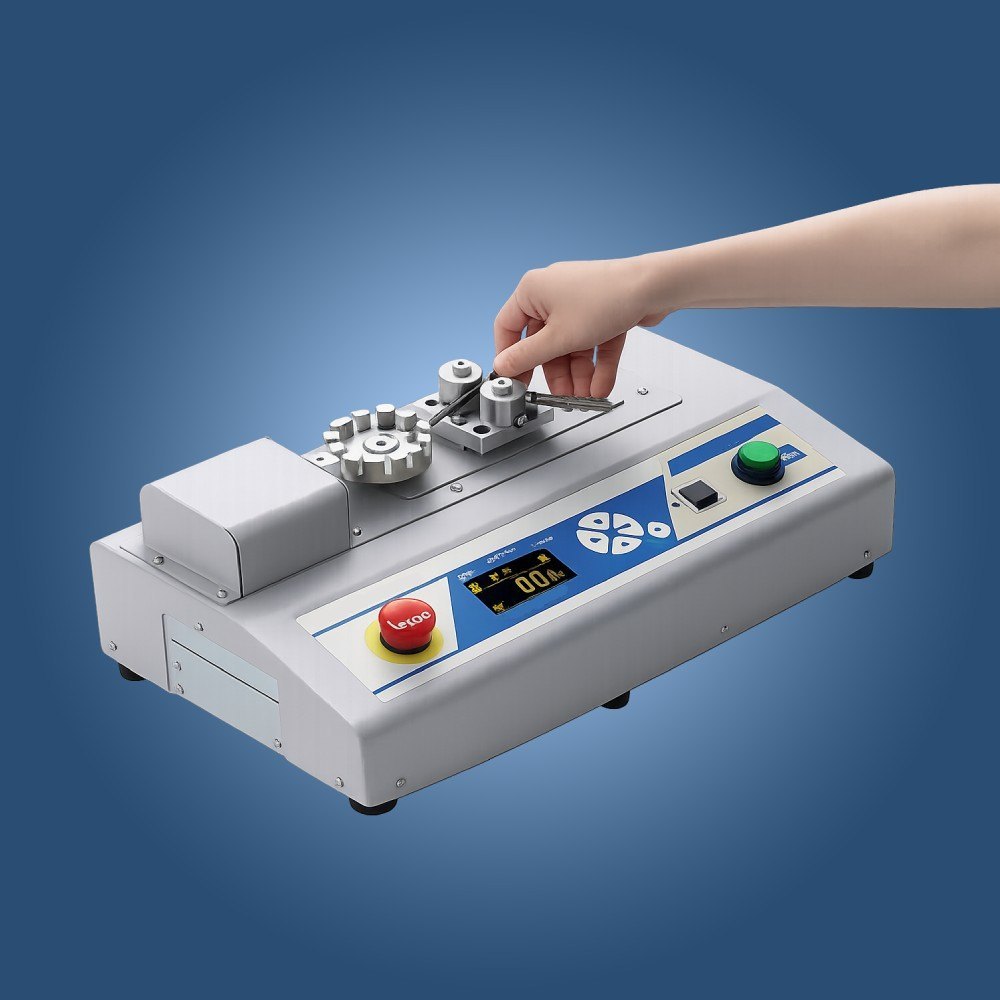

Automatic Wire Crimp Tester
