Flameproof Cable Gland

Name: Flameproof Cable Gland
Brand: QANDS SERVICES AND TECHNOLOGIES LLP
Price: 350.0 INR
Availability: InStock

Price 350.0 INR/ Piece

Get a Price/Quote

MOQ : 200 Pieces

Flameproof Cable Gland Specification

Install Type
External Threaded, suitable for panel and field mounting

Core Number
Not Applicable

Features
Flameproof, Weatherproof, Explosion proof, Corrosion Resistant, Dust Tight, Durable construction

Number of Conductor
Not Applicable

Conductor Shape
Round

Armored Material
Suitable for both Armored & Unarmored Cables

Rated Temperature
-20 C to 80 C Celsius (oC)

Locking Type
Threaded with Lock Nut and Washer

Core Material
Not Applicable

Tensile Strength
High mechanical strength Pounds per Square Inch (psi)

Operating Temperature
-20 C to 80 C Celsius (oC)

Usage & Applications
Used where protection from fire, flame, and sparks is required

Dielectiric Strength
As per IECEx Newtons per Millimetre Squared (N/mm2)

Weight
Varies depending on size and material Kilograms (kg)

Cable Type
Armored and Unarmored cable compatible

Diameter
16 130 Millimeter (mm)

Insulation
No inherent insulation, provides mechanical sealing only

Conductor Type
Other

Impedance
Not Applicable Volt (v)

Product Type
Cable Gland

Power Rating
Not applicable

Length
Customizable as per cable and gland size Millimeter (mm)

Insulation Material
Other

Application
Other

Conductor Material
Other

Jacket Material
Other

Storage Temperature
-20 C to 80 C Celsius (oC)

Connector Color
Metallic Silver

Rated Voltage
not applicable Volt (V)

Shield Material
Not applicable (depends on cable used)

Jacket Color
Other

Dimension (L*W*H)
Available in several sizes as per cable diameter, e.g., M16, M20, M25, M32, M40, M50, M63, M75 Meter (m)

Phase
Not Applicable

Warranty
1 Year

Display Type
not applicable

Rated Current
Not applicable Volt (v)

Frequency
Not applicable Hertz (HZ)

Conductor
Suitable for Unarmoured Cables

Material
Brass (Nickel Plated), Stainless Steel (SS 304/316), Aluminium

Color
Silver, Grey (Based on finish and material)

Size
Available in metric and imperial thread sizes (M16, M20, M25, M32, M40, M50, M63, M75, etc.)

Cable Entry Type
Single and Double Compression

Clamping Range
From 6mm up to 75mm OD cables

Finish
Nickel Plated, Mirror Finish for SS

Explosion Protection Class
Ex d IIC, Ex e II, ATEX Certified

Environmental Resistance
Weatherproof, Chemical Resistant, Dust Proof, Water Proof

Thread Type
Metric (ISO), BSP, PG, NPT threads as per requirement

Maintenance
Low maintenance required

Standards
IS/IEC 60079-1, IS/IEC 60529, IS/IEC 62444, EN 60079-0, EN 60079-1

Packing Type
Polybags, Corrugated Box, Carton

Mounting
Suitable for enclosure and surface mounting

Accessory Options
Locknuts, Earth Tags, Shrouds, Reducers, Adaptors

Ingress Protection
IP66/IP67/IP68 (Depending on model and installation)

Seal Type
EPDM or Neoprene Rubber Sealing Rings

Flameproof Cable Gland Trade Information

Minimum Order Quantity
200 Pieces

Supply Ability
2500000 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Flameproof Cable Gland

Description

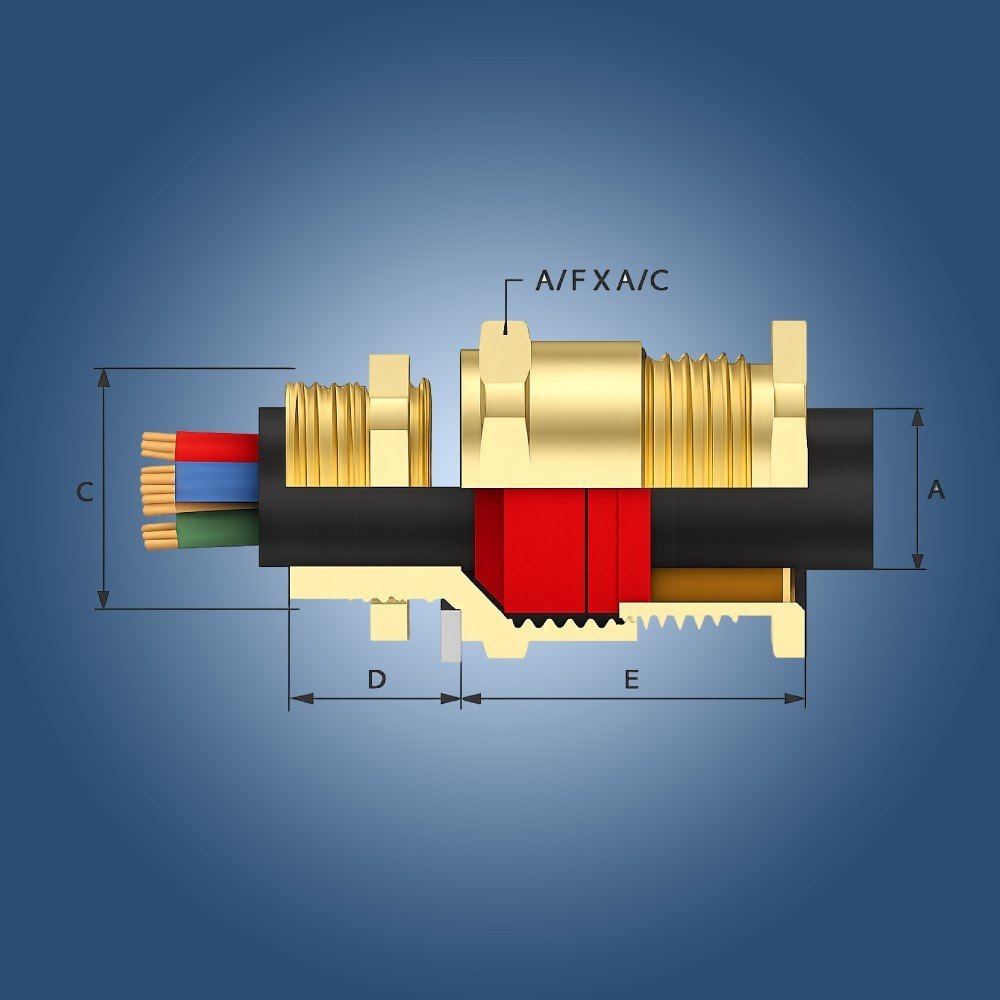

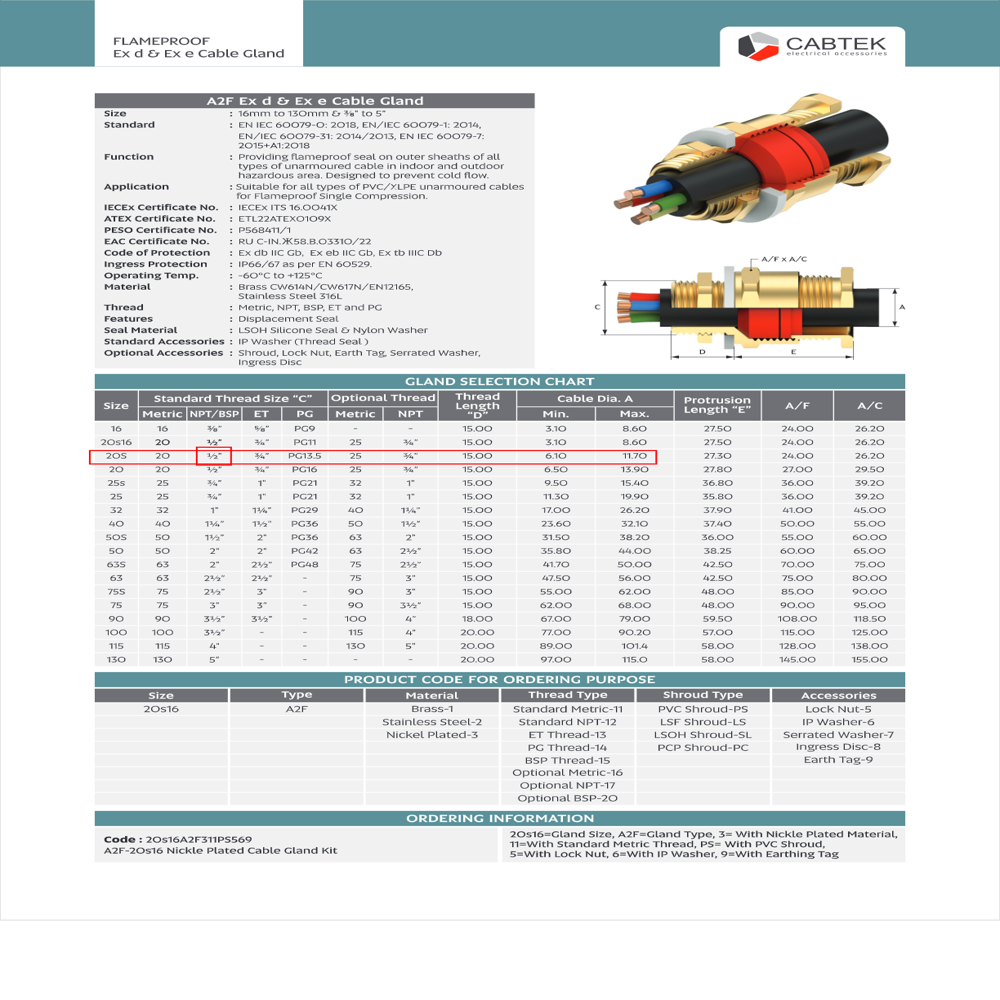

The CABTEK A2F Ex d & Ex e Flameproof Cable Gland is a high-performance cable entry solution for hazardous areas. Made from Brass or SS316L, it offers IP66/IP67 protection, a reliable flameproof seal, and IECEx, ATEX, PESO, and EAC certifications. Designed for unarmoured cables, it is ideal for Oil & Gas, Offshore, Marine, Petrochemical, and Industrial applications.
