Explosion Proof Ex e Junction Box

Name: Explosion Proof Ex e Junction Box
Brand: QANDS SERVICES AND TECHNOLOGIES LLP
Price: 500.0 INR
Availability: InStock

Get a Price/Quote

MOQ : 200 Pieces

Explosion Proof Ex e Junction Box Specification

Power Rating
750 v

Product Type
Ex e Junction Box

Protection Level
IP66

Surface Treatment
Other

External Size
Model Dependent Millimeter (mm)

Thickness
Heavy Duty Industrial Construction Millimeter (mm)

Paint Finishing
Molded UV Resistant Finish

Accuracy
not applicable %

Dimension (L*W*H)
Model Dependent Millimeter (mm)

Weight
5 Kilograms (kg)

Rated Voltage
750 Volt (V)

Usage & Applications
Oil & Gas, Petrochemical, Chemical, Marine, Power Plants, Pharmaceutical, Hazardous Areas

Operating Temperature
-20 C to +55 C Celsius (oC)

Cable Type
Armoured & Unarmoured Industrial Cable

Color
Black

Warranty
1 Year

Phase
Single Phase / Three Phase

Display Type
Not Applicable

Frequency
50/60 Hertz (HZ)

Features
Explosion Protected, IP66, Corrosion Resistant, High Mechanical Strength, Optional Miniature Fuse

Material
Glass Fibre Reinforced Polyester Resin

Conductor
1.5 mm , 2.5 mm , 4 mm , 6 mm

Rated Current
13 33 A Ampere (amp)

Explosion Proof Ex e Junction Box Trade Information

Minimum Order Quantity
200 Pieces

Delivery Time
7 Days

Explosion Proof Ex e Junction Box About

Product Description

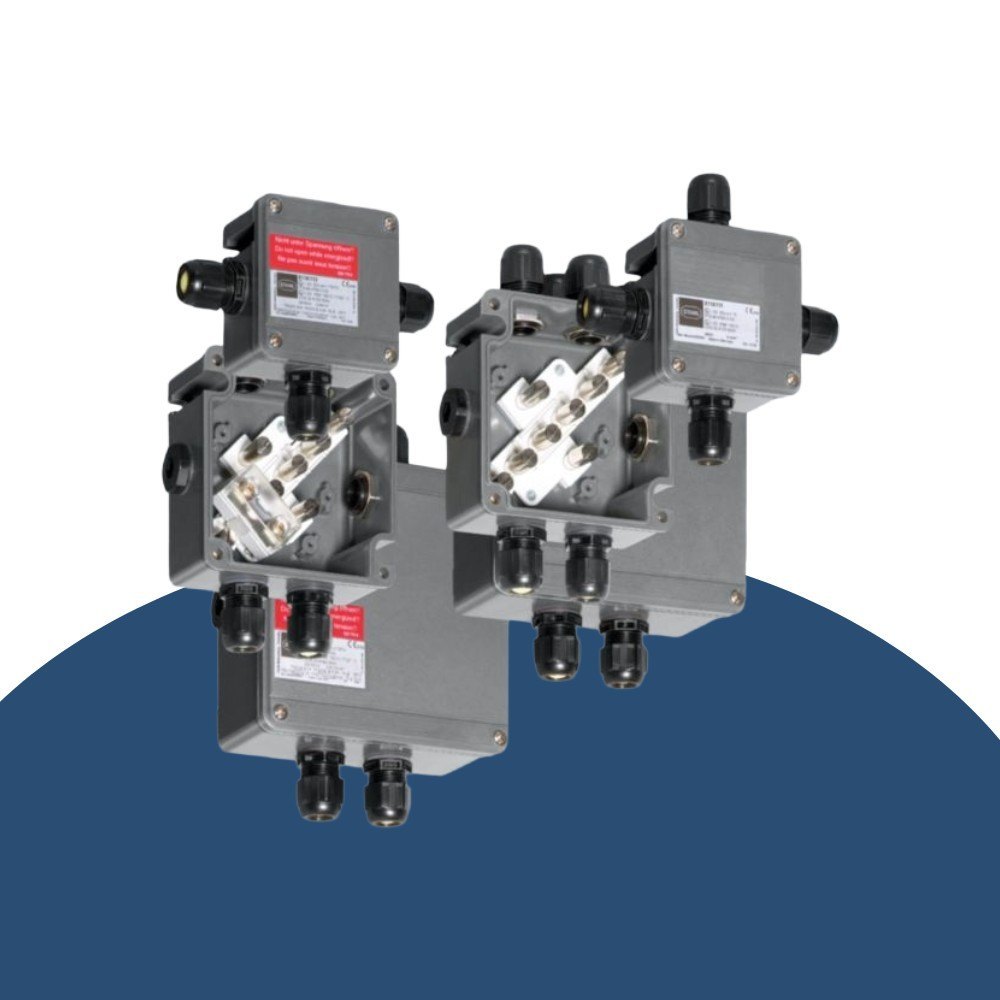

The R. STAHL Ex e Junction Box 8118/121-539 is a high-performance explosion-protected enclosure designed for safe electrical connections and distribution in hazardous areas. Manufactured from glass fibre reinforced polyester resin with IP66 protection, it is certified for ATEX and IECEx applications in Zone 1, Zone 2, Zone 21, and Zone 22. Rated for up to 750 V AC and available with multiple terminal configurations, it is an ideal solution for oil & gas, petrochemical, marine, chemical, power, and pharmaceutical industries requiring reliable and durable hazardous area electrical equipment.

Key Features

R. STAHL Series 8118/121-539 Ex e Junction Box

Explosion Protected Ex eb IIC T6 / T5 Gb

Suitable for Zone 1, Zone 2, Zone 21 & Zone 22

ATEX & IECEx Certified

IP66 Dust & Water Protection

Glass Fibre Reinforced Polyester Resin Enclosure

Rated Voltage up to 750 V AC

Supports Multiple Conductor Sizes (1.56 mm)

Optional Miniature Fuse Installation

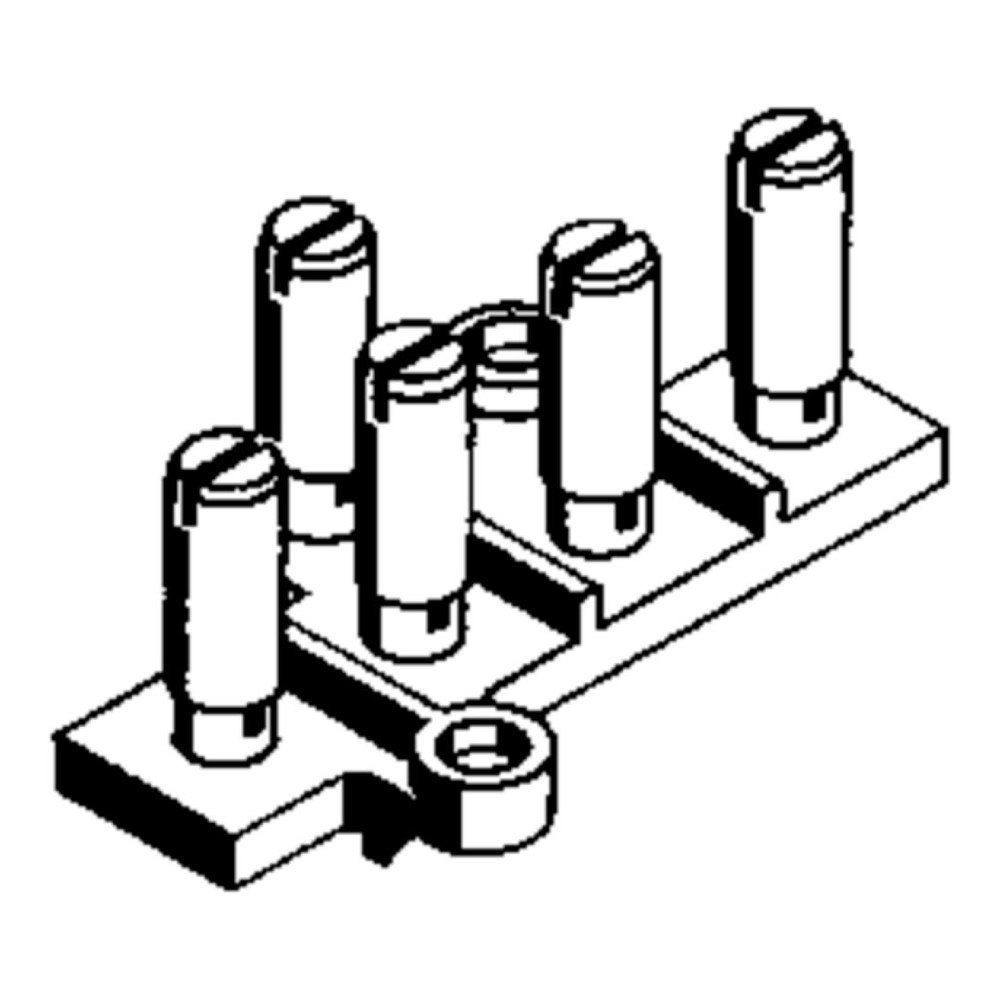

Available with 4, 5 or 8 Mantle Terminals

Suitable for Electrical Connection & Distribution

High Mechanical Strength and Corrosion Resistance

Compatible with Plastic or Metal Cable Glands

Ideal for Oil & Gas, Petrochemical, Marine, Chemical, Pharmaceutical & Power Industries

Reliable Performance in Harsh Hazardous Environments

Designed for Hazardous Environment Safety

This junction box meets stringent safety standards with explosion-proof Ex e certification. Its glass fibre reinforced polyester resin construction delivers high durability and corrosion resistance, ideal for environments exposed to chemicals, humidity, or seawater. The IP66 rating ensures total protection from dust and high-pressure water, making it an optimal choice for hazardous settings.

Versatile Compatibility and Application

The junction box supports a diverse range of conductors (1.5 mm to 6 mm) and is compatible with armoured and unarmoured cables. Suitable for both single and three-phase connections, it offers flexibility across oil & gas, petrochemical, marine, pharmaceutical, and power generation industries. Model-dependent sizing allows tailored installations.

Reliable Performance and Easy Maintenance

Operating efficiently between -20C and +55C, this box is engineered to handle demanding industrial conditions. Its molded UV-resistant finish and heavy-duty build enhance lifespan, while the optional miniature fuse adds an extra layer of safety. Maintenance is straightforward, contributing to continued, safe operation with a 1-year warranty.

FAQ's of Explosion Proof Ex e Junction Box:

Q: How does the Explosion Proof Ex e Junction Box ensure safety in hazardous areas?

A: The box uses Ex e certified explosion-proof technology and a glass fibre reinforced polyester resin shell for robust protection. Its IP66 rating prevents ingress of dust and water, making it suitable for oil & gas, petrochemical, marine, pharmaceutical, and other hazardous environments.

Q: What is the installation process for this junction box?

A: Installation involves selecting the appropriate model size, securing the box to a sturdy surface using the provided fixtures, and connecting the correct cable type (armoured or unarmoured) within the specified conductor range. Detailed instructions are provided for both single and three-phase systems to ensure safe, compliant installation.

Q: When should the optional miniature fuse be used?

A: It is advisable to use the optional miniature fuse when further electrical circuit protection is required for delicate instrumentation or to comply with specific safety regulations within your facility.

Q: Where can this junction box be effectively deployed?

A: This junction box is tailored for deployment in industrial facilities such as oil & gas refineries, marine vessels, chemical plants, power stations, and environments with exposure to hazardous or corrosive substances.

Q: What are the key benefits of the molded UV-resistant finish?

A: The molded UV-resistant black finish acts as a safeguard against long-term sunlight exposure and harsh environmental factors, reducing the risk of material degradation and extending the lifespan of the enclosure.

Q: How does the junction box accommodate different cable and conductor sizes?

A: The design supports multiple conductor sizes (1.5 mm, 2.5 mm, 4 mm, and 6 mm) and is compatible with both armoured and unarmoured industrial cables, offering versatile solutions for various electrical installations.
