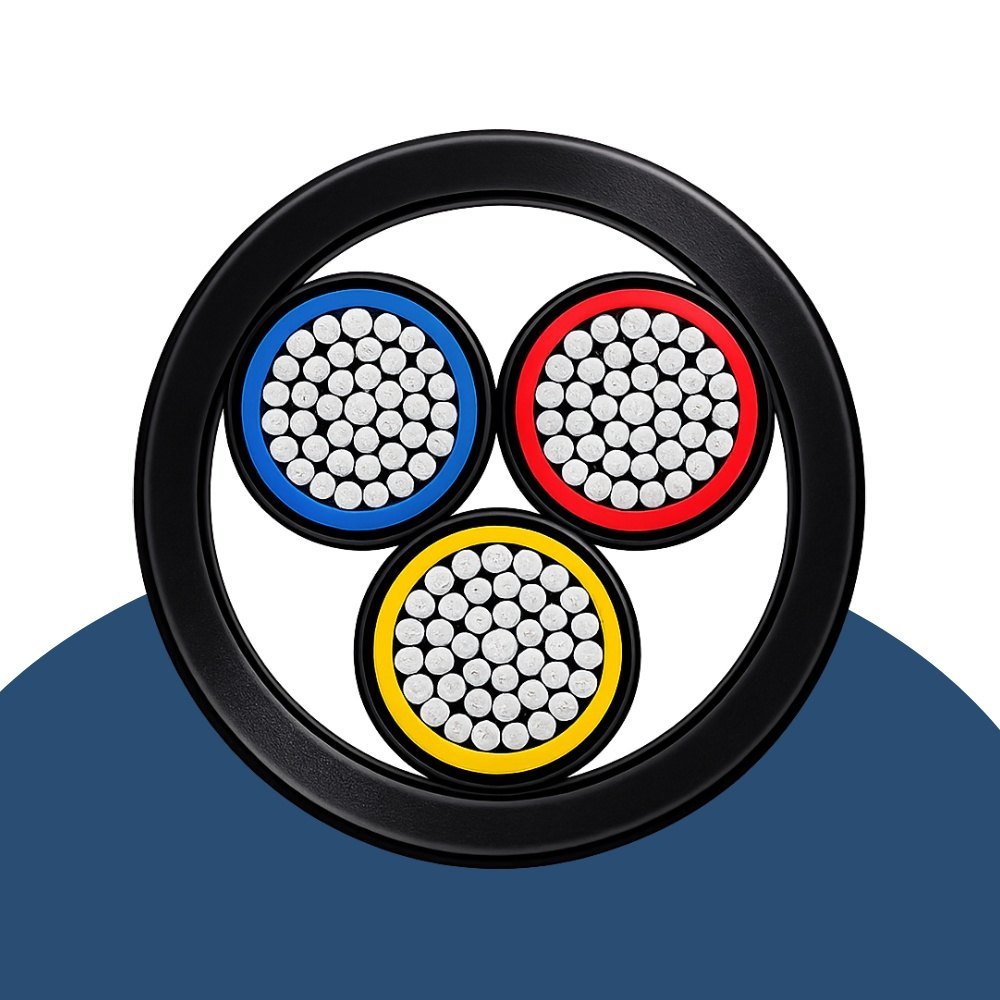

Power Cables

• Application
• Construction

• Conductor Material
• Copper

• Conductor Shape
• Round

• Core Number
• 4 core

• Frequency
• 50 Hertz (HZ)

• Insulation Material
• PTFE

• Phase
• 3

• Product Type
• Insulated Power Cables

• Rated Temperature
• 40 to 120 Celsius (oC)

• Usage & Applications
• Industrial

• Warranty
• 1 Year

• Application
• Other, Internal wiring of electrical equipment, appliances, lighting, medical equipment, automotive, industrial machinery

• Armored Material
• Not armored (also available with steel braiding upon request)

• Cable Type
• Flexible Silicone Insulated Wire

• Color
• Red, Black, White, Yellow, Green, Orange (custom colors available)

• Conductor Material
• Other, Copper (Tinned or Bare)

• Conductor Shape
• Other, Stranded

• Conductor Type
• Other, Flexible Stranded Copper

• Connector Color
• Red, Black, White, Yellow, Green, Orange (Multi-color available)

• Core Material
• Flexible Copper

• Core Number
• 1 Core, 2 Core, 3 Core, 4 Core, Multi-core choices

• Diameter
• As per cable type & size (e.g., 2.5mm2 = approx. 3.4mm OD)

• Dielectiric Strength
• 2.0 kV/min

• Dimension (L*W*H)
• Custom as required (depends on gauge/size)

• Features
• High Flexibility, Heat Resistant, Flame Retardant, Durable, Weather Resistant, Non-Toxic, Chemically Inert, Excellent Electrical Insulation, UV Resistant, Ozone Resistant

• Impedance
• Standard, as per cable size (not specifically controlled)

• Install Type
• Fixed or Flexible (Movable Installation)

• Insulation
• Silicone Rubber Insulation

• Insulation Material
• Other, Silicone Rubber

• Jacket Color
• Other, White, Orange, Red, Black, Yellow

• Jacket Material
• Other, Silicone Rubber

• Length
• Available in custom lengths (standard rolls of 10m, 50m, 100m etc.)

• Material
• Silicone Rubber, Copper

• Number of Conductor
• Single core, Multi-core

• Operating Temperature
• -60C to +180C

• Product Type
• Silicone Rubber Cable

• Rated Temperature
• -60C to +180C (can withstand up to 200C for short periods)

• Shield Material
• No shield (unshielded type); Shielded option available on request

• Size
• 0.5 sqmm to 25 sqmm (custom sizes available)

• Storage Temperature
• -40C to +180C

• Tensile Strength
• High Tensile Strength (>8 N/mm2)

• Usage & Applications
• Indoor and outdoor electrical wiring, high temperature environments, machinery, electronics, medical equipment

• Voltage
• Other, 300V/500V, up to 1000V (as per specification)

• Weight
• Varies as per size and length
