Flameproof Brass Cable Glands

Name: Flameproof Brass Cable Glands
Brand: QANDS SERVICES AND TECHNOLOGIES LLP
Price: 30.0 INR
Availability: InStock

Price 30.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Flameproof Brass Cable Glands Specification

Armored Material
Steel Wire Armour (SWA) / Aluminium Wire Armour (AWA)

Cable Type
SWA (Steel Wire Armoured) / AWA (Aluminium Wire Armoured)

Conductor Type
Solid

Core Material
Copper

Weight
0.60 kg Kilograms (kg)

Rated Temperature
-60 C to +125 C Celsius (oC)

Tensile Strength
Not Specified Newtons per Millimetre Squared (N/mm2)

Impedance
Not Applicable Ampere (amp)

Conductor Shape
Round

Number of Conductor
Multi-Core Compatible

Insulation
LSF Silicone Seal & Nylon Washer

Operating Temperature
-60 C to +125 C Celsius (oC)

Diameter
16 mm to 90 mm Millimeter (mm)

Locking Type
Double Compression

Features
Flameproof, Double Compression, IP66/IP67, Corrosion Resistant, Weatherproof, Armoured Cable Compatible

Dielectiric Strength
Not Applicable Newtons per Millimetre Squared (N/mm2)

Install Type
Threaded

Usage & Applications
Industrial Hazardous Areas

Core Number
Multi-Core Compatible

Product Type
Flameproof Brass Cable Glands

Power Rating
Not Applicable

Length
15 mm Millimeter (mm)

Insulation Material
Other

Application
Industrial

Conductor Material
Copper

Jacket Material
Other

Storage Temperature
-60 C to +125 C Celsius (oC)

Connector Color
Metallic Gold / Silver

Rated Voltage
Not Applicable Ampere (A)

Shield Material
Steel Wire Armour (SWA) / Aluminium Wire Armour (AWA)

Jacket Color
Other

Dimension (L*W*H)
Varies by gland size Millimeter (mm)

Display Type
Not Applicable

Warranty
Not Applicable

Phase
Single Phase / Three Phase Compatible

Rated Current
Not Applicable Ampere (amp)

Conductor
Armoured Cable Compatible

Frequency
Not Applicable Hertz (HZ)

Color
Metallic Gold / Silver

Material
Brass CW614N/CW617N, Nickel Plated Brass, SS316L

Size
16 mm to 90 mm

Flameproof Brass Cable Glands Trade Information

Minimum Order Quantity
1000 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Flameproof Brass Cable Glands About

Product Description

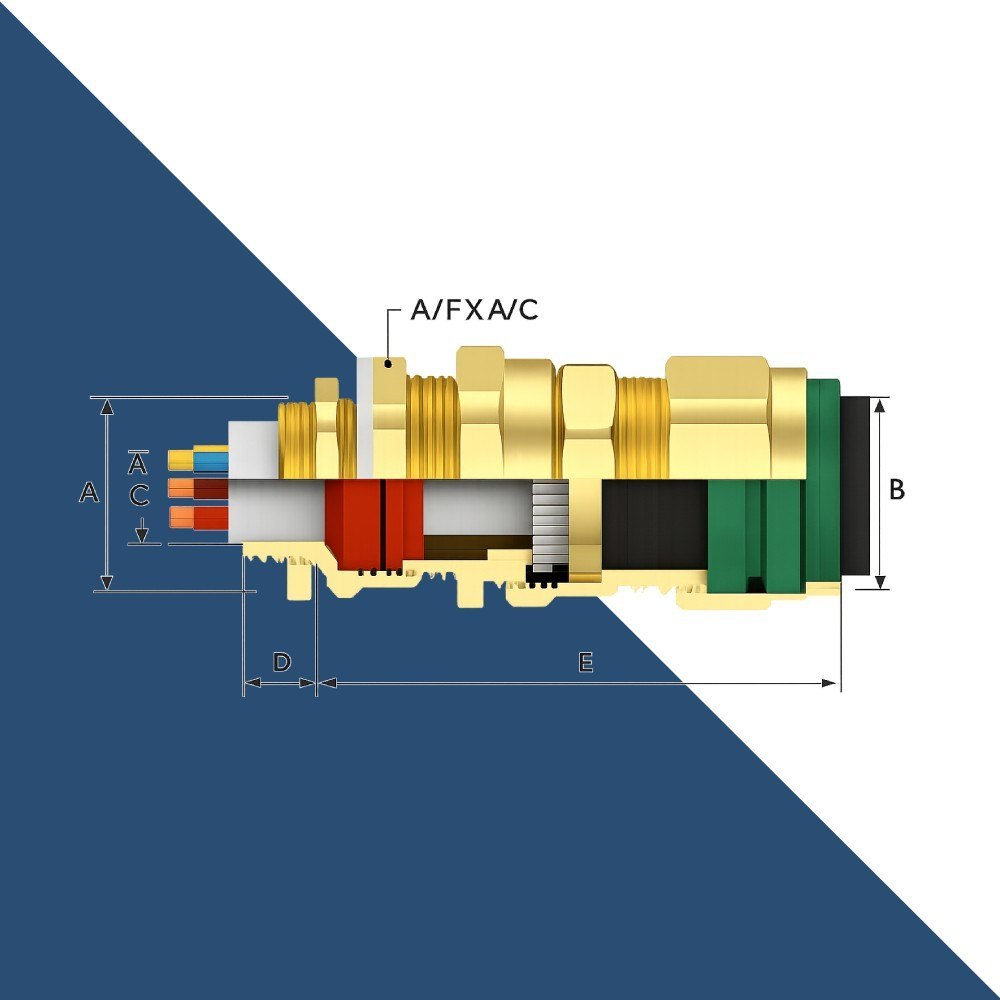

E1FW Flameproof Brass Cable Gland is a high-performance Ex d & Ex e certified cable gland designed for safe and reliable cable termination in hazardous industrial environments. Engineered for indoor and outdoor applications, it provides a flameproof seal on the cable inner sheath and an environmental seal on the outer sheath, ensuring maximum protection against dust, moisture, and explosive atmospheres.

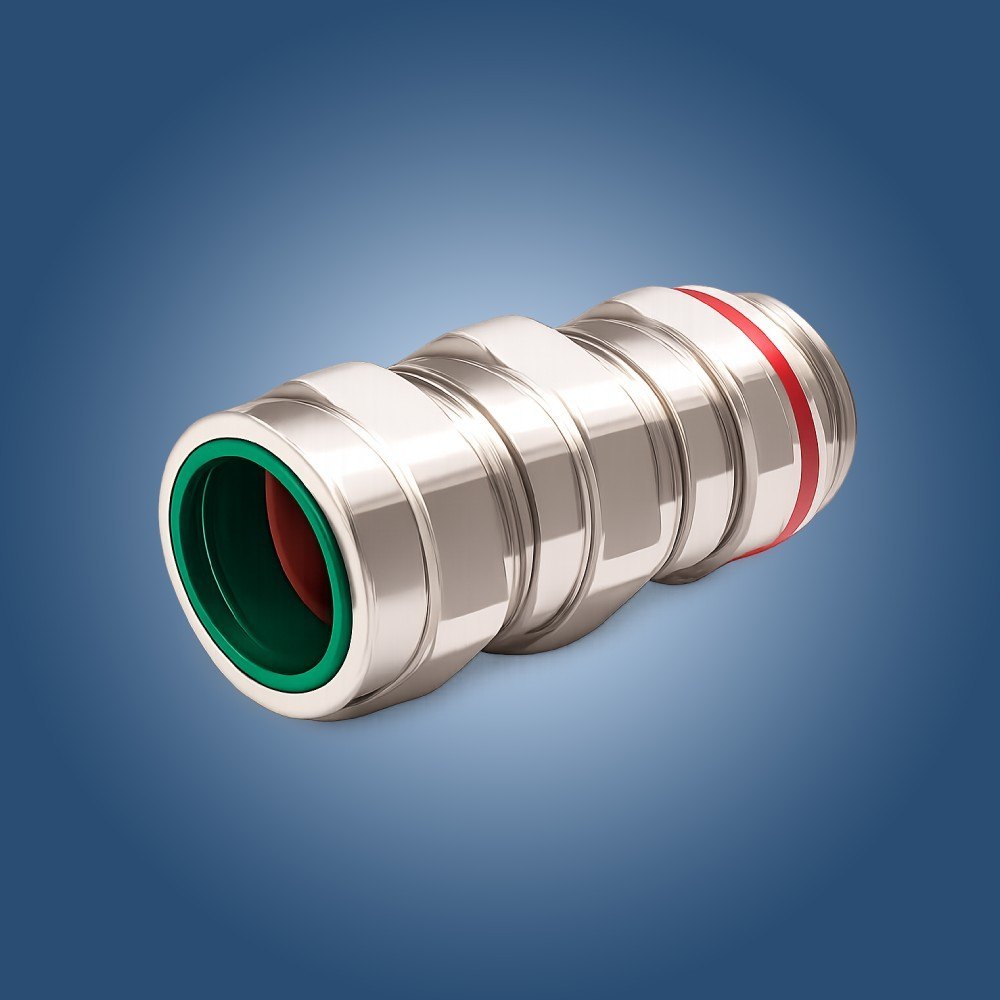

Manufactured from premium Brass CW614N/CW617N, Nickel Plated Brass, or SS316L Stainless Steel, the E1FW cable gland offers outstanding corrosion resistance, superior mechanical strength, and long service life. Its double compression design ensures secure cable retention while maintaining electrical continuity through the armoured cable, making it ideal for SWA (Steel Wire Armoured) and AWA (Aluminium Wire Armoured) cable installations.
Certified with IECEx, ATEX, EAC, PESO, and CIMFR, this cable gland complies with international hazardous area standards and is trusted across oil & gas, petrochemical, offshore, marine, pharmaceutical, and industrial automation applications.

Key Features

Ex d & Ex e double compression design

Suitable for hazardous area installations

IP66/IP67 ingress protection

Available in Brass, Nickel Plated Brass, and SS316L

Suitable for SWA and AWA armoured cables

Flameproof seal on cable inner sheath

Environmental seal on outer sheath

Excellent mechanical cable retention

Provides electrical continuity through armour wire

Corrosion-resistant for harsh industrial environments

Operating temperature from -60C to +125C

Available with Metric, NPT, BSP, ET and PG threads

Compatible with indoor and outdoor installations

Wide range of optional accessories available

Easy installation and low maintenance

Superior Safety for Hazardous Environments

These brass flameproof cable glands deliver advanced protection in industrial hazardous areas. With their double compression sealing, IP66/IP67 rating, and corrosion-proof build, they ensure both safety and reliability for electrical installations where environmental factors and security are critical. They suit indoor and outdoor installations, with robust construction supporting a longstanding, trouble-free operation.

Versatility Across Armoured Cables

Designed to fit steel wire armoured (SWA) and aluminium wire armoured (AWA) cables, these glands are compatible with cable diameters from 16 mm to 90 mm. Their multi-core and round conductor support makes them adaptable for various cable types, catering to complex wiring systems in both single phase and three phase applications.

FAQ's of Flameproof Brass Cable Glands:

Q: How do Flameproof Brass Cable Glands ensure safety in hazardous industrial areas?

A: Flameproof Brass Cable Glands provide safety through double compression locking, high-grade brass or stainless steel materials, and IP66/IP67 ingress protection. These features prevent the entry of hazardous substances and withstand extreme temperatures, making them suitable for use in potentially explosive or corrosive industrial environments.

Q: What types of cables are compatible with these cable glands?

A: These glands are compatible with steel wire armoured (SWA) and aluminium wire armoured (AWA) cables, supporting diameter sizes between 16 mm and 90 mm. They can accommodate solid, round, multi-core copper conductors for both single phase and three phase systems.

Q: Where are these flameproof cable glands typically installed?

A: They are commonly used in indoor and outdoor hazardous areas such as manufacturing plants, chemical facilities, oil refineries, and any site where secure, flameproof cable termination is essential.

Q: What is the installation process for these cable glands?

A: Installation involves fitting the gland to the cable and securing it by threaded connection. The double compression mechanism and sealing components like the LSF silicone seal and nylon washer ensure a tight, flameproof fit. Detailed installation should follow manufacturer guidelines based on cable type and site requirements.

Q: What are the benefits of using double compression flameproof cable glands?

A: Double compression glands provide superior sealing against dust, water, and gases, reducing the risk of cable failure. They also ensure mechanical retention of cables, robust environmental protection, and comply with stringent industrial safety norms.

Q: Do these cable glands require special maintenance?

A: These glands are designed for low maintenance, thanks to corrosion-resistant materials and weatherproof construction. Regular visual inspection to check for degradation or improper sealing is recommended to maintain safe operation.
