Automatic Wire Crimp Tester

Name: Automatic Wire Crimp Tester
Brand: QANDS SERVICES AND TECHNOLOGIES LLP
Price: 280000.0 INR
Availability: InStock

Price 280000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic Wire Crimp Tester Specification

Accuracy
0.2% Full Scale %

Weight
18 Kilograms (kg)

Operate Method
Automatic, Semi-Automatic

Gas Pressure
Not Applicable N/m2

Power
Single Phase Electric Ampere (amp)

Classification
Digital Force Testing Equipment

Response Time
Instant Seconds

Temperature
0 C to 40 C Celsius (oC)

Dimension (L*W*H)
45 35 25 cm Centimeter (cm)

Application
Wire Harness, Cable Assembly, Electrical Terminal Testing

Resolution
0.1 N

Features
Go/No-Go LED Indicators, 1500 Data Memory, OLED Display, 26 Test Profiles, Automatic Test Cycle

Mounting Type
Bench Top

Voltage
100 240 VAC Volt (v)

Interface Type
USB & RS-232C

Measuring Range
0 1000 N Newton

Operating Voltage
100 240 VAC Volt (V)

Number of Specimens
1 Specimen per Test

Material
Mild Steel

Max Height
Not Specified

Capacity
220 lbf Milliliter (ML)

Equipment Type
Automatic Wire Crimp Tester

Humidity
10 90% RH

Port Size
Not Applicable

Color
Grey / Silver

Hardness
Not Specified

Frequency
50/60 Hz Hertz (HZ)

Product Type
Automatic Wire Crimp Tester

Automation Grade
Automatic

Specimen Size
1 8 mm Wire Diameter Millimeter (mm)

Power Supply
Electricity / AC Power

Display Type
OLED Digital Display

Usage
Industrial / Laboratory

Test Range
1000 N

Machine Weight
18 Kilograms (kg)

Test Speed
10, 25, 50 & 100 mm/min

Test Width
1 8 mm Millimeter (mm)

Test Stroke
999 Seconds Force Hold Duration

Control Mode
Automatic

Automatic Wire Crimp Tester Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Delivery Time
7 Days

Main Domestic Market
All India

Automatic Wire Crimp Tester About

Product Description (Human Touch + SEO)

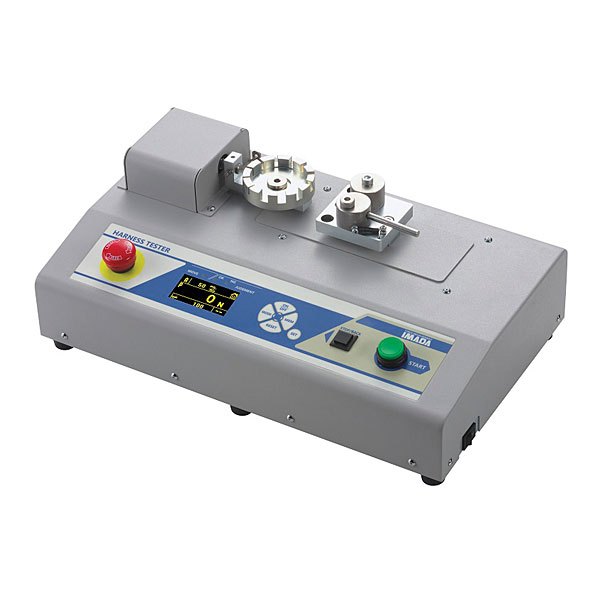

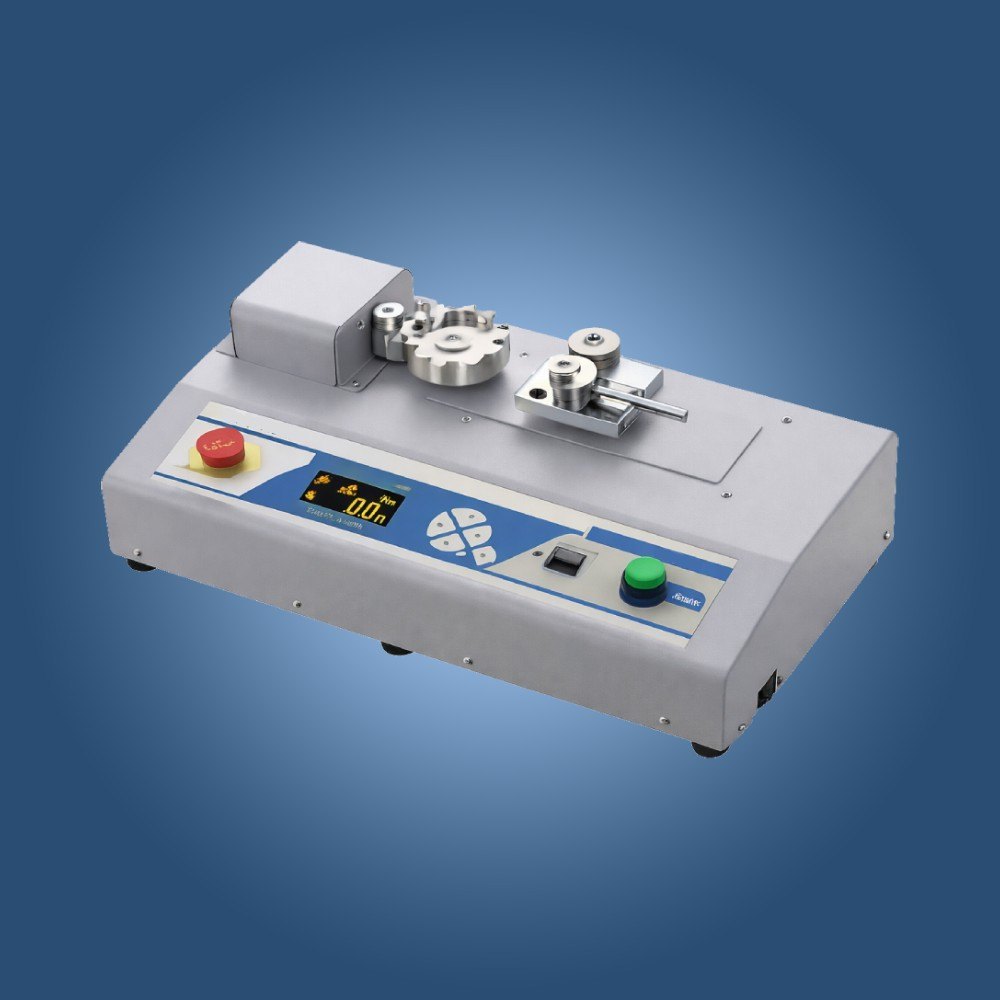

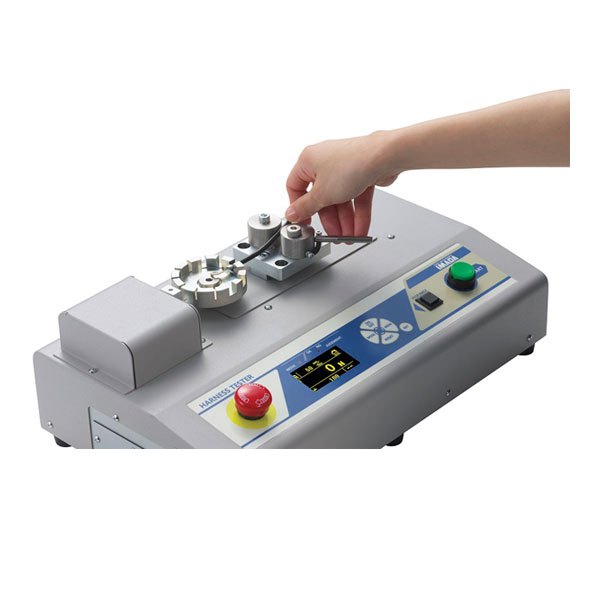

The ACT-220 Automatic Wire Crimp Tester is a high-precision testing instrument designed to accurately measure the pull strength of crimped wire terminals up to 220 lbf (1000 N). Engineered for manufacturers, quality control laboratories, cable assembly facilities, and electrical industries, this tester helps ensure every crimp connection meets industry quality and safety standards.
Featuring both destructive and non-destructive testing modes, the ACT-220 simplifies wire crimp testing through its intuitive operation, OLED display, programmable test profiles, and automatic testing cycle. With selectable test speeds, Go/No-Go LED indicators, onboard memory, and PC connectivity via RS-232C and USB, it provides reliable, repeatable, and efficient performance for production and quality assurance environments.
Designed to comply with international crimp testing standards, the ACT-220 supports multiple wire sizes and offers optional crimp attachments, making it an ideal solution for cable manufacturers, automotive wiring harness producers, aerospace applications, and electronics assembly industries.

Key Features

Measures crimp pull strength up to 220 lbf (1000 N).

Destructive and non-destructive testing modes.

Selectable test speeds: 10, 25, 50 & 100 mm/min.

Bright OLED display for excellent visibility.

Color-coded Go/No-Go LED indicators.

Force hold function up to 999 seconds.

Stores up to 26 programmable test configurations.

Internal memory for 1,500 test results.

Time and date stamp for every test.

Supports lbf, kgf, and Newton (N) measurement units.

RS-232C output for data transfer and reporting.

USB connectivity with ACT Logger software.

Compatible with wire diameters from 1 mm to 8 mm (AWG 308).

Includes calibration certificate traceable to NIST.

Optional crimp attachments available for different applications.

Designed to comply with UL 486A-B, ASTM, MIL, ANSI/EIA, NASA, IEC, and JIS crimp testing standards.

High-Precision Digital Testing

Utilizing advanced technology, the Automatic Wire Crimp Tester delivers precise and repeatable measurements with 0.2% full scale accuracy. The OLED digital display and instant response time ensure reliable data capture for industrial and laboratory applications. This system is perfect for maintaining rigorous quality standards in wire harness and cable assembly production.

User-Friendly and Versatile Operation

Designed to simplify testing, this equipment features an automatic or semi-automatic control mode, programmable profiles, and straightforward operation. Its Go/No-Go LED indicators and data logging capability streamline workflows, making it ideal for both everyday production floor use and detailed laboratory analysis.

Comprehensive Testing Capability

With its broad measuring range of 0-1000 N and ability to accommodate various specimen sizes (1-8 mm wires), the tester supports a wide array of applications. Operators can select from multiple test speeds and test profiles, ensuring adaptability for different wires, cables, and terminal specifications in diverse environments.

FAQ's of Automatic Wire Crimp Tester:

Q: How does the Automatic Wire Crimp Tester operate during a test cycle?

A: The tester performs wire crimp pull tests automatically or semi-automatically, applying a controlled force based on pre-set profiles. It measures the tensile strength of wire crimps while displaying real-time force data and Go/No-Go LED indicators on its OLED display.

Q: What types of applications can this wire crimp tester be used for?

A: This equipment is designed for wire harness testing, cable assembly, electrical terminal verification, and overall wire crimp pull testing. It is suitable for quality control in both industrial production and laboratory environments.

Q: When should I use the different test speeds provided by the tester?

A: Test speed adjustment (10, 25, 50 & 100 mm/min) depends on the wire or terminal specification and your quality protocol. Slower speeds may be better for delicate wires, while higher speeds provide rapid throughput for robust samples.

Q: Where can the Automatic Wire Crimp Tester be installed?

A: With its compact bench top mounting and standard 100-240 VAC power requirement, the tester can be installed in quality control labs, production lines, or research environments requiring precise wire crimp testing.

Q: What is the process for data storage and export from the tester?

A: The device features an inbuilt memory capable of storing up to 1500 test results, which you can access via the USB or RS-232C interface for easy data export and analysis.

Q: How does using this tester benefit my quality control process?

A: By providing accurate, instant, and repeatable results with user-friendly operation and extensive data management, the tester improves reliability, speeds up workflow, and helps ensure compliance with industry standards for wire and cable assemblies.
