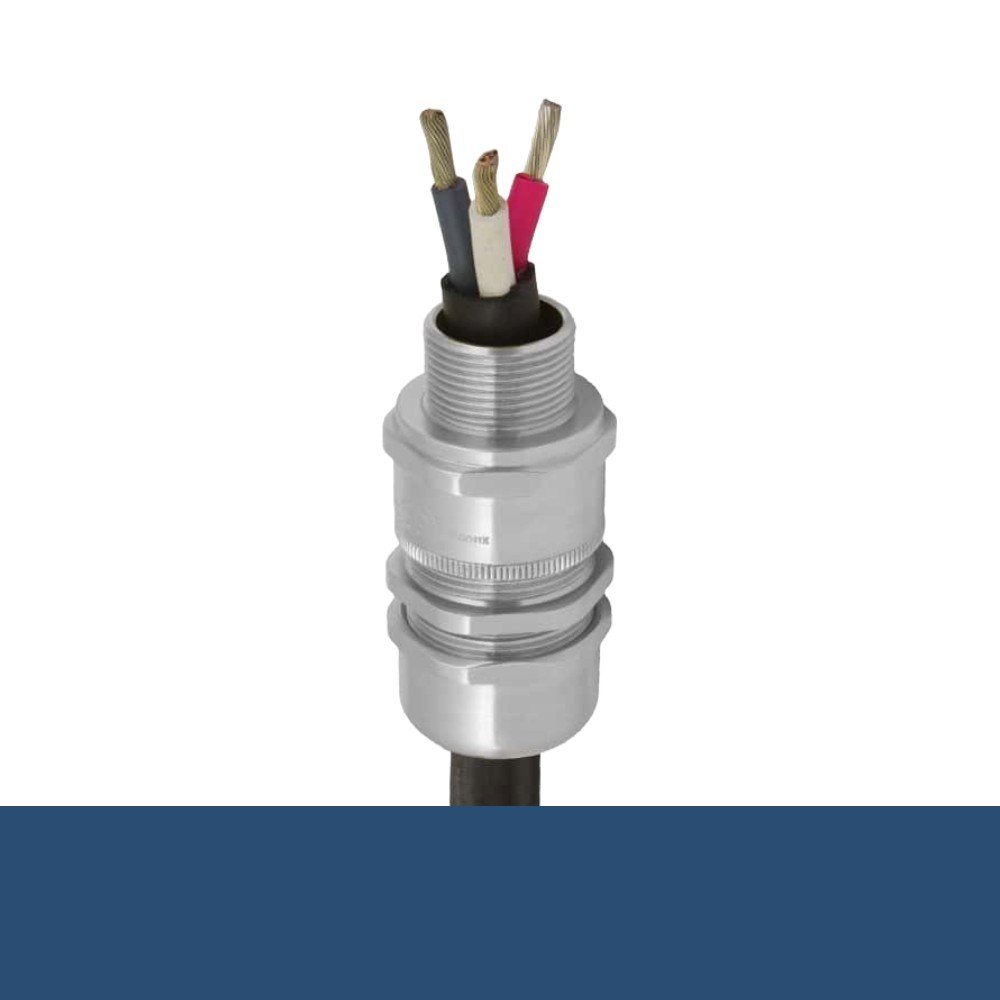

Stainless Steel Cable Glands

Name: Stainless Steel Cable Glands
Brand: QANDS SERVICES AND TECHNOLOGIES LLP
Price: 850.0 INR
Availability: InStock

Price 850.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Stainless Steel Cable Glands Specification

Cable Type
Unarmoured & Braided Cable

Core Material
Copper

Tensile Strength
Type B Cable Anchorage (IEC 62444) Newtons per Millimetre Squared (N/mm2)

Features
Double Seal, Flameproof, IP66/IP67/IP68, Corrosion Resistant, Deluge Protected, High Cable Retention

Number of Conductor
Multi-Core Compatible

Weight
0.50 Kilograms (kg)

Insulation
CMP SOLO LSF Halogen-Free Thermoset Elastomer

Locking Type
Double Seal / Compression

Conductor Type
Solid

Core Number
Multi-Core Compatible

Diameter
16 130 Millimeter (mm)

Operating Temperature
-60 C to +130 C Celsius (oC)

Impedance
Not Applicable Ampere (amp)

Usage & Applications
Oil & Gas, Marine, Petrochemical, Industrial Hazardous Areas

Conductor Shape
Round

Dielectiric Strength
Not Applicable Newtons per Millimetre Squared (N/mm2)

Armored Material
Not Applicable (Designed for Unarmoured & Braided Cables)

Rated Temperature
-60 C to +130 C Celsius (oC)

Install Type
Threaded

Product Type
Stainless Steel Cable Glands

Power Rating
Not Applicable

Length
49 129 mm Millimeter (mm)

Insulation Material
Other

Application
Marine, Industrial

Conductor Material
Copper

Jacket Material
Other

Storage Temperature
-60 C to +130 C Celsius (oC)

Connector Color
Silver

Shield Material
Braided Shield

Rated Voltage
Not Applicable Ampere (A)

Jacket Color
Other

Dimension (L*W*H)
Varies by gland size Millimeter (mm)

Display Type
Not Applicable

Warranty
1 year

Phase
Single Phase / Three Phase Compatible

Rated Current
Not Applicable Ampere (amp)

Frequency
Not Applicable Hertz (HZ)

Conductor
Unarmoured & Braided Cable Compatible

Color
Silver

Material
316 Stainless Steel

Size
16 to 130 mm

Stainless Steel Cable Glands Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Stainless Steel Cable Glands

Product Description

Stainless Steel Cable Gland is a globally approved, high-performance cable gland engineered for safe cable entry in hazardous industrial environments. Designed specifically for unarmoured and braided cables, it features a double sealing system that provides superior environmental protection and dependable flameproof performance in explosive atmospheres.
Manufactured from premium 316 Stainless Steel, this cable gland offers outstanding corrosion resistance, making it ideal for offshore platforms, marine environments, chemical plants, refineries, and other demanding industrial applications. Its CMP Displacement Seal Technology ensures secure cable retention while maintaining a reliable seal against dust, water, and harsh operating conditions.
With international approvals including ATEX, IECEx, UKEX, CSA, PESO, EAC, and Marine certifications, the SS2K cable gland complies with global hazardous area standards and is suitable for installations requiring maximum safety and long-term reliability.

Key Features

Double seal design for enhanced environmental protection

Suitable for Ex d, Ex e, Ex ta & Ex nR hazardous areas

Designed for unarmoured and braided cables

Premium 316 Stainless Steel construction

Superior corrosion resistance for marine and offshore environments

IP66, IP67 & IP68 ingress protection

CMP Displacement Seal Technology

High cable retention performance

Deluge protected for harsh environments

Operating temperature from -60C to +130C

Suitable for direct and remote installations

Globally approved with multiple international certifications

Easy installation and low maintenance

Unmatched Marine-Grade Durability

Engineered with 316 stainless steel, these cable glands offer superior corrosion resistance, making them ideal for marine, oil & gas, and petrochemical sectors. The rugged double seal construction ensures lasting performance, even in the most aggressive and deluge-prone environments, safeguarding your installations against weather and chemical exposure.

Versatile and Secure Cable Management

Compatible with both unarmoured and braided cables as well as multi-core copper conductors, these glands accommodate sizes from 16 to 130 mm. Their threaded design facilitates straightforward installation, yielding high cable retention in industrial hazardous areas. Tested for compatibility with single and three-phase systems, you'll enjoy secure, adaptable cable entry solutions.

Safety, Compliance, and Convenience

Boasting flameproof, IP66/IP67/IP68 ratings, these cable glands meet international safety and performance standards. The included one-year warranty and halogen-free insulation help ensure peace of mind and environmental responsibility, while the compression locking type delivers added security for each installation.

FAQ's of Stainless Steel Cable Glands:

Q: How do I select the correct size of stainless steel cable gland for my application?

A: To select the appropriate size, check the overall cable diameter and refer to the size range of 16 to 130 mm offered by these glands. Consider the cable type (unarmoured or braided) and consult the size chart provided by the supplier for an optimal, secure fit.

Q: What makes 316 stainless steel suitable for marine and industrial environments?

A: 316 stainless steel offers exceptional corrosion resistance and durability, especially against saltwater and harsh chemicals, making it ideal for marine and petrochemical settings. These properties ensure long-term reliability where regular metals would degrade quickly.

Q: When should I use double-seal, flameproof cable glands?

A: Double-seal, flameproof cable glands should be used in hazardous areas prone to fire risks, liquid ingress, or explosive atmospheres-such as in oil & gas platforms, marine vessels, and petrochemical plants-where maximum safety and ingress protection are critical.

Q: Where can these cable glands be installed?

A: They're designed for installations in industrial hazardous areas, including oil & gas facilities, offshore rigs, marine ships, and petrochemical refineries, providing robust protection for cable entries exposed to extreme conditions.

Q: What is the installation process for these cable glands?

A: Install the gland by threading it onto your equipment entry point, insert the compatible cable (unarmoured or braided) through the gland, then tighten the compression seal to achieve a flameproof, watertight, and high-retention seal as per IEC 62444 standards.

Q: What are the operational benefits of using these cable glands?

A: These glands offer high cable retention, corrosion resistance, and a wide operating temperature range (-60C to +130C). They're rated IP66/IP67/IP68 for reliable protection against dust, water, and deluge, supporting extended cable service life and system safety.
