Thermal & Optical Bi-Spectrum Network Bullet Camera

Send Inquiry

Request To Call Back

Thermal & Optical Bi-Spectrum Network Bullet Camera

Price 75000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Thermal & Optical Bi-Spectrum Network Bullet Camera Specification

IR Distance
Up to 40 m

Features
Temperature Measurement, Temperature Exception Alarm, Bi-Spectrum Image Fusion, Picture-in-Picture, 3D DNR, Audio Alarm

Sensor Size
Other

Flash Point
Not Applicable

Feature
Other

Battery
NA

Media Type
Other

Sensor
CMOS

Lens
6.2 mm

Product Type
Other

View Angle
39.42 22.14 (Optical)

WiFi
NO

ISO
Not Specified

Aperture
F1.6

Color
White

Body Material
Metal

Pixels
4 Megapixel (2688 1520) Pixel (P)

Screen Size
Not applicable Inch (in)

Zoom Option
Digital Zoom

Memory Card Type
Micro SD/ SDXC

Video Capture
Yes

Video Capture Resolution
2688 1520 (Optical), 160 120 Thermal

Thermal & Optical Bi-Spectrum Network Bullet Camera Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About Thermal & Optical Bi-Spectrum Network Bullet Camera

Product Description

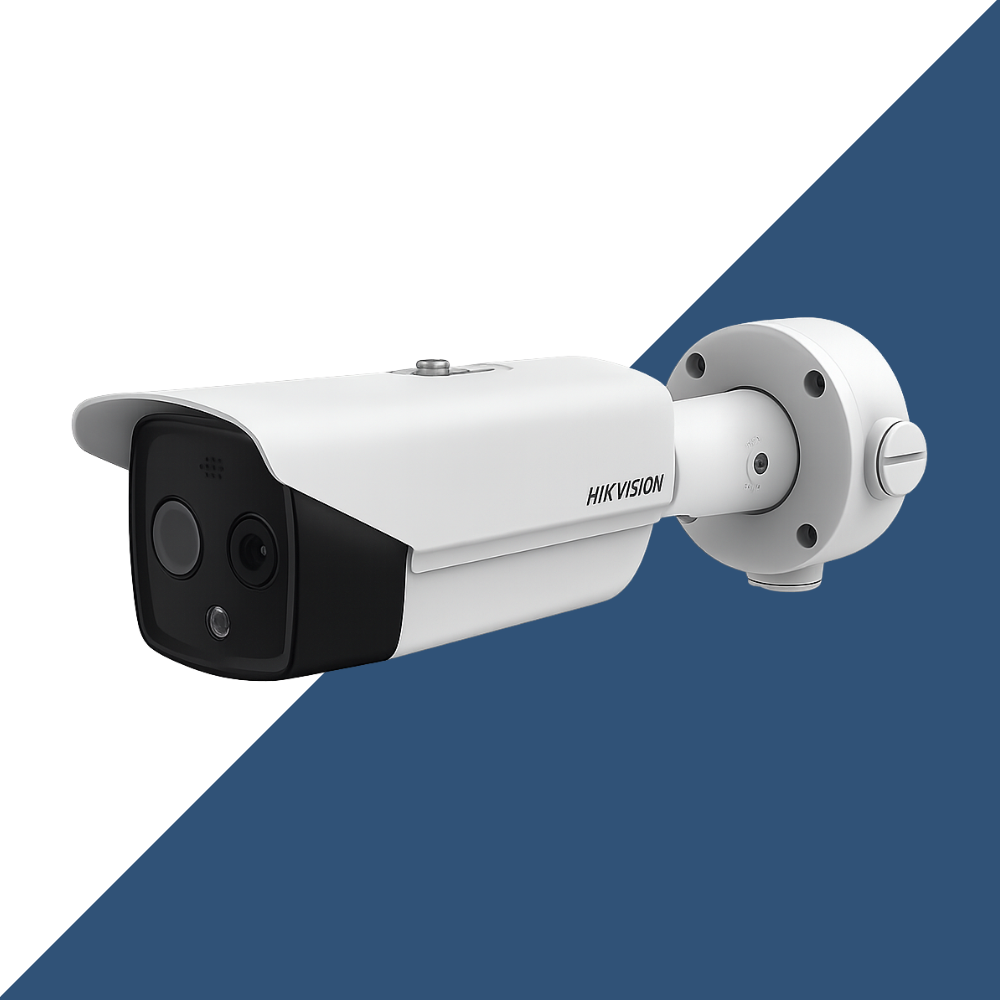

The Hikvision DS-2TD2617B-6/PA Temperature Screening Thermographic Camera combines thermal imaging and optical surveillance in a single bi-spectrum network bullet camera, enabling accurate real-time temperature measurement and reliable visual monitoring. Equipped with a 160 120 thermal sensor and a 4 MP optical camera, it delivers precise temperature screening with an accuracy of 0.5C, making it suitable for temperature inspection and monitoring applications.

Designed for professional environments, the camera features temperature exception alarms, bi-spectrum image fusion, picture-in-picture (PIP) display, 3D DNR image enhancement, and up to 40 m IR illumination for clear monitoring in low-light conditions. With IP66 weatherproof protection, PoE support, H.265/H.264 video compression, ONVIF compatibility, and support for Micro SD cards up to 128 GB, it is an ideal solution for airports, customs, schools, hospitals, industrial facilities, and security monitoring. This device is intended for temperature screening and industrial inspection and is not designed for medical diagnosis.

Key Features

Thermal & Optical Bi-Spectrum Network Bullet Camera
160 120 Thermal Resolution with 4 MP Optical Camera
Temperature Measurement Range 30C to 45C
High Accuracy 0.5C Temperature Screening
Reliable Temperature Exception Alarm Function
Bi-Spectrum Image Fusion and Picture-in-Picture (PIP) Display
Up to 40 m IR Night Vision
H.265 / H.264 / MJPEG Video Compression
3D DNR Image Enhancement & 120 dB WDR
Built-in Audio Alarm & Two-Way Alarm I/O
Supports Micro SD Card up to 128 GB
IP66 Weatherproof Design with PoE Support
Suitable for Airports, Customs, Schools, Hospitals, Industrial Facilities, and Temperature Screening
