Non-Sparking Explosion-proof Plug & Sockets

Send Inquiry

Request To Call Back

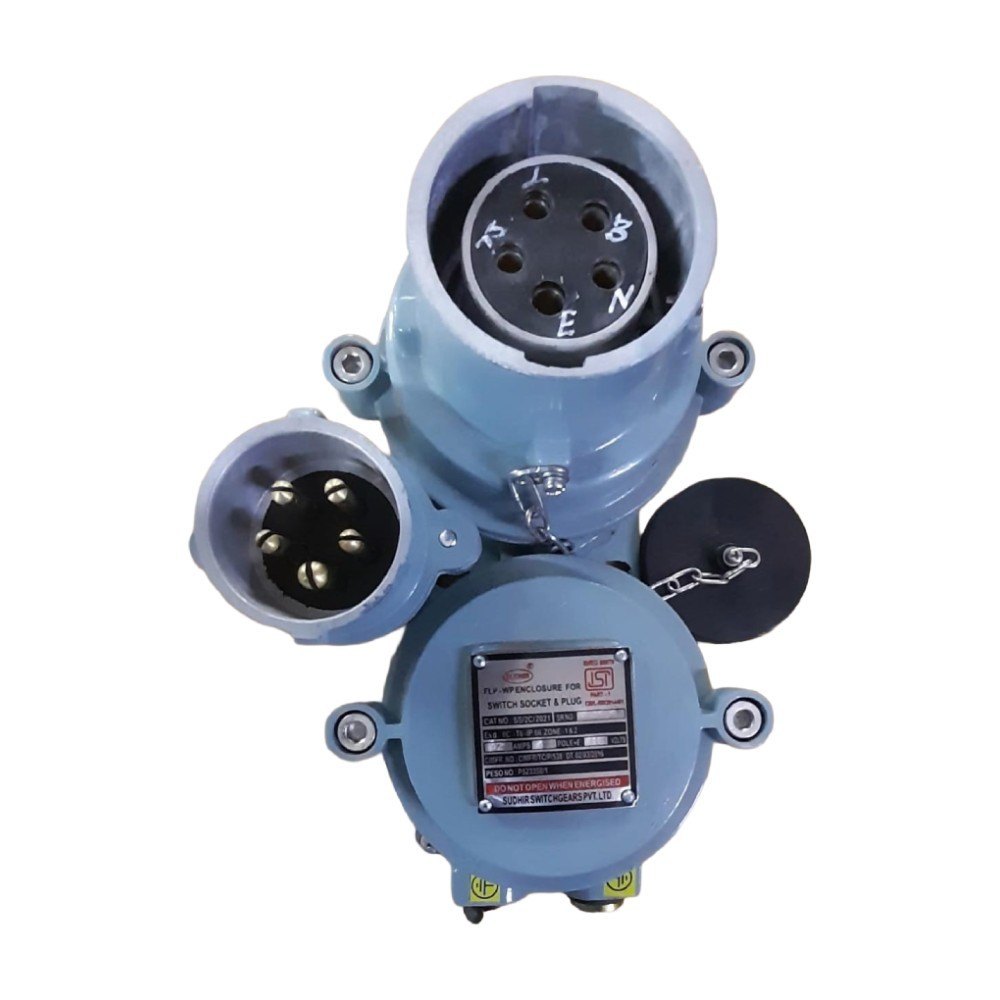

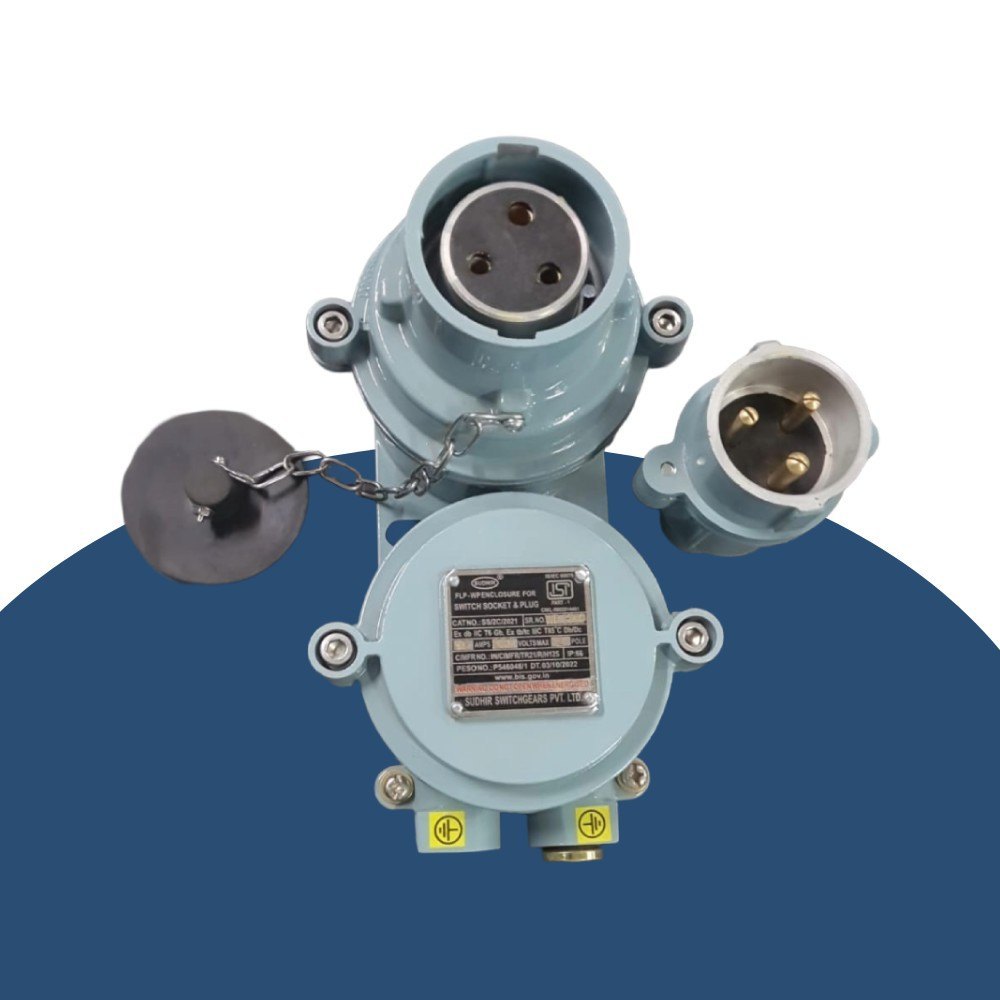

Non-Sparking Explosion-proof Plug & Sockets

Price 29.67 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Non-Sparking Explosion-proof Plug & Sockets Specification

Surface Treatment
Other

Cable Diameter
Not Specified Millimeter (mm)

Thickness
Not Specified Millimeter (mm)

Application
Other

Power Rating
Up to 32 Amp

Product Type
Other

Insulation Resistance
Not Specified

Terminal Socket
Up to 32A TPN

Style
Direct Entry

Fittings
Interlocked Plug & Socket

Rated Voltage
240 Volt (V)

Usage & Applications
Industrial, Hazardous Areas

Weight
Not Specified Grams (g)

Cable Type
Industrial Power Cable

Operating Temperature
T6 Temperature Class Celsius (oC)

Color
Other

Display Type
Not Applicable

Phase
3

Warranty
As Per Manufacturer

Frequency
50 Hertz (HZ)

Rated Current
16A / 20A / 25A / 32A Ampere (amp)

Conductor
Copper

Features
Flameproof, IP66, Interlocked, Weatherproof

Material
Die Cast Aluminium Alloy

Non-Sparking Explosion-proof Plug & Sockets Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Non-Sparking Explosion-proof Plug & Sockets About

Product Description

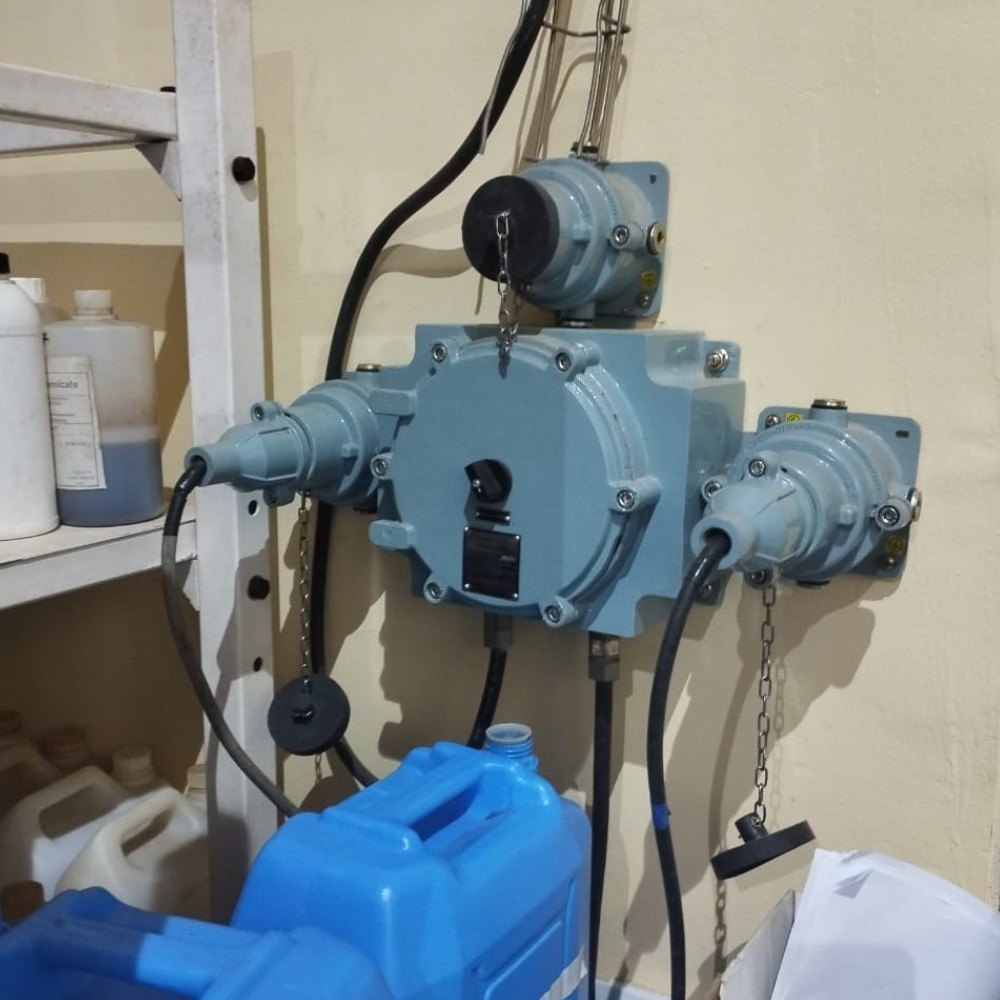

The Flameproof Interlocked Plug and Socket is designed to provide safe and dependable electrical power connections in hazardous industrial environments. Manufactured with a rugged die-cast aluminium alloy enclosure, this explosion proof switch socket delivers reliable performance in areas where flammable gases, vapours, or combustible dust may be present.

Designed for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous locations, the unit features Ex db IIA/IIB T6 Gb protection with IP66 weatherproof sealing, making it suitable for both indoor and outdoor industrial applications. Its integrated interlocking mechanism enhances operational safety by preventing the plug from being removed while the switch is in the ON position, helping protect personnel and equipment during operation.

Certified by CIMFR, BIS, and PESO, the switch socket is available in multiple configurations up to 32 Amp (DP, TP, and TPN) to meet different industrial power requirements. With stainless steel hardware, neoprene/silicone sealing gasket, internal and external earthing, and durable epoxy powder coating, it offers long-lasting performance in demanding environments such as Oil & Gas, Chemical, Petrochemical, Marine, Pharmaceutical, Power Plants, and other hazardous industrial facilities.

Key Features

Flameproof Interlocked Plug & Socket Direct Entry Design
Certified for Ex db IIA/IIB T6 Gb Hazardous Areas
Suitable for Zone 1, Zone 2, Zone 21 & Zone 22 Installations
IP66 Weatherproof Protection for Indoor & Outdoor Use
Rugged Die Cast Aluminium Alloy Enclosure
Available in 16A, 20A, 25A & 32A Ratings
Supports DP, TP & TPN Configurations (Up to 32A)
Safety Interlock Prevents Plug Removal in ON Position
Stainless Steel Hardware with Epoxy Powder Coated Finish
Internal & External Earthing for Enhanced Electrical Safety
Neoprene/Silicone Endless Gasket for Reliable Sealing
Certified by CIMFR, BIS & PESO for Hazardous Area Applications

Superior Protection for Hazardous Environments

Designed to safeguard industrial operations, these explosion-proof plug & sockets excel in hazardous areas where flammable substances might be present. Their flameproof and weatherproof IP66 construction ensures safety and continuity, significantly reducing accident risks in tough weather or explosive atmospheres.

Versatile Industrial Application

With compatibility across a variety of hazardous zones-oil & gas, marine, chemical, and more-these fittings are suitable for demanding industrial scenarios. Their robust die-cast aluminium alloy build and interlocked design offer added security and reliability for daily operations.

Reliable Performance and Easy Installation

Equipped for three-phase power with direct entry style, these sockets handle copper conductor connections up to 32 amps. This versatility makes installation straightforward for qualified professionals handling a range of industrial power cables in complex site environments.

FAQ's of Non-Sparking Explosion-proof Plug & Sockets:

Q: How do the non-sparking explosion-proof plug & sockets ensure safety in hazardous areas?

A: These plugs and sockets are manufactured from die-cast aluminium alloy and designed to prevent ignition of flammable gases or vapors. Their flameproof and IP66 weatherproof enclosures, combined with interlocking features, minimize risks of sparks and accidental exposure in industrial hazardous environments.

Q: What types of industries are best suited for using these plugs and sockets?

A: They are ideal for oil & gas, chemical, petrochemical, marine, pharmaceutical, and other industrial sectors where explosive atmospheres are a concern. The design accommodates challenging conditions typically found in these environments.

Q: When should interlocked plug & socket systems be used instead of standard types?

A: Interlocked systems are recommended whenever power supply safety is crucial, particularly in hazardous areas. The interlock mechanism prevents electrical connection or disconnection under load, reducing the risk of electrical sparks in volatile atmospheres.

Q: Where can these explosion-proof sockets be installed?

A: They are designed for installation in hazardous locations, including refineries, offshore platforms, chemical plants, and manufacturing units. Always ensure installation by certified electricians, in compliance with local safety standards.

Q: What is the maximum power rating that these sockets can handle?

A: The sockets and plugs handle up to 32 amps at 240 volts in three-phase (TPN) configurations, suitable for heavy-duty industrial machinery and equipment.

Q: How do you select the right cable and conductor for installation?

A: Use industrial power cables with copper conductors that match the rated current-16A, 20A, 25A, or 32A-matching the application's requirements and adhering to electrical safety codes for hazardous areas.
