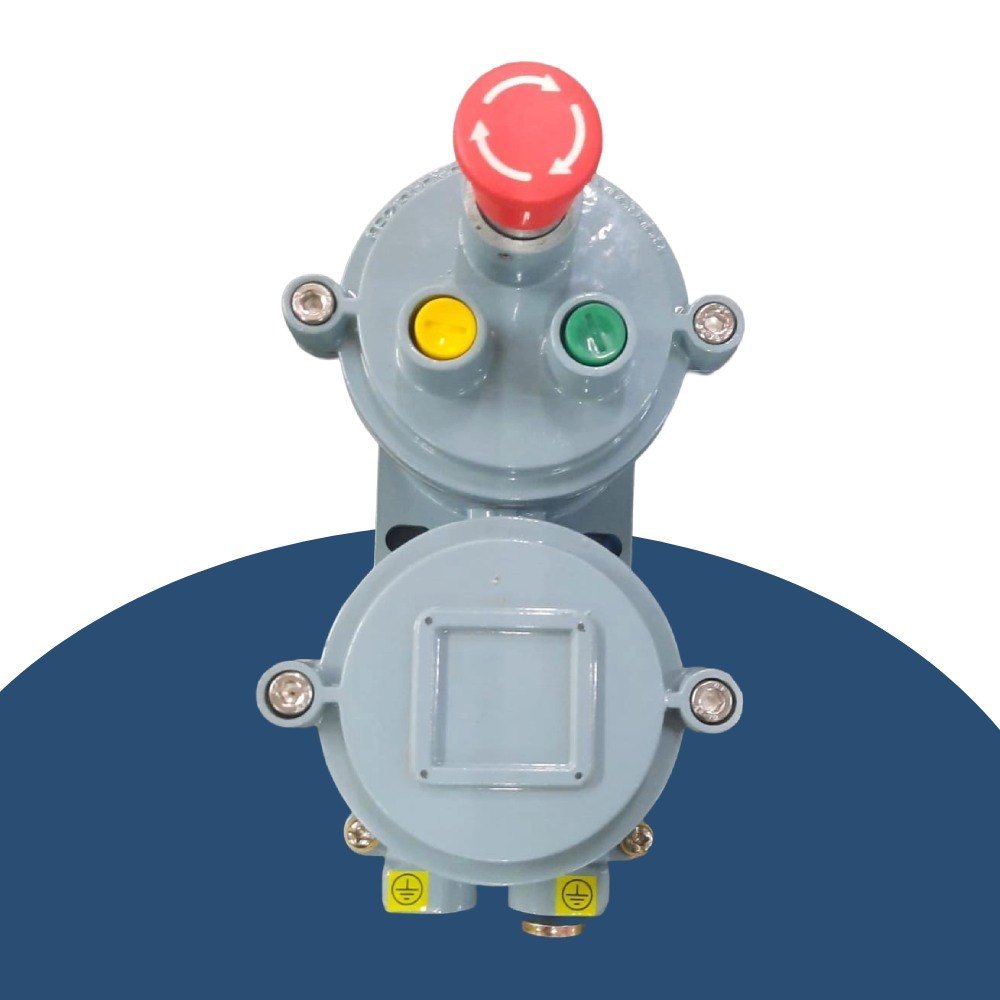

Push Button Station

• Automation Grade
• Automatic

• Circuit Type
• Push Button Control Circuit

• Color
• Black with Multi-color Buttons (Red Green Yellow)

• Current Rating
• 5A

• Finish Type
• Matte Finish

• Insulation Resistance
• High Insulation Resistance

• Material
• Die-cast Aluminum

• Mounting Type
• Wall Mount

• No Of Poles
• Double Pole

• Number of Module
• 3 Modularity Stations

• Product Type
• Expl osion Proof Push Button Station

• Protection Level
• IP65

• Size
• Compact

• Stoke
• Short Stroke

• Automation Grade
• Manual

• Cable Type
• Armoured / Unarmoured Cable with M20 Entry

• Circuit Type
• Control Circuit

• Color
• Grey Body / Red Push Button

• Conductor
• Copper

• Contact Resistance
• Not Specified Milliohm (m)

• Current Rating
• 10 A

• Display Type
• Not Specified

• Features
• Flameproof Ex d, M20 Cable Entry, Silver Alloy Contacts, Mushroom Stop Push Button, Corrosion Resistant, Heavy Duty Construction

• Finish Type
• Epoxy Powder Coated

• Frequency
• 50-60 Hertz (HZ)

• Insulation Resistance
• Not specified

• Material
• Cast Aluminium Alloy

• Max. Current
• 10 Ampere (amp)

• Max. Voltage
• 690 Volt (V)

• Mechanical Life
• 100,000 Operations Days

• Mounting Type
• Wall Mount

• No Of Poles
• 1 Pole

• Number of Module
• 1

• Operating Temperature
• -20 C to +55 C Celsius (oC)

• Phase
• Single phase

• Power Rating
• Not applicable

• Product Type

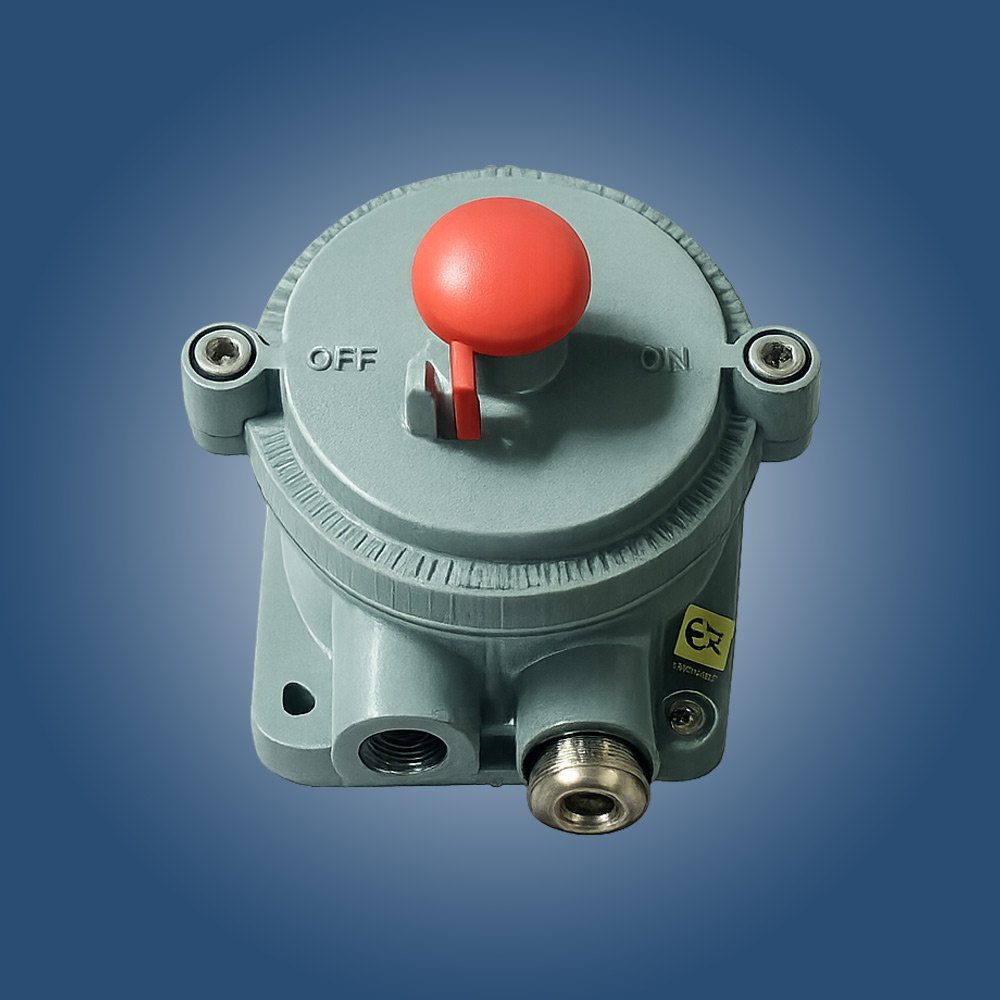

• Explosion Proof Push Button Control Station

• Protection Level
• Ex d Flameproof

• Rated Current
• 10 Ampere (amp)

• Rated Voltage
• 690 v Volt (V)

• Response Time
• Instantaneous Seconds

• Size
• 250 146 116 mm

• Stoke
• Mushroom Push Button

• Temperature Range
• -20 C to +55 C Celsius (oC)

• Usage & Applications
• Oil & Gas, Chemical, Petrochemical, Offshore, Pharmaceutical, Hazardous Areas

• Warranty
• 1 year

• Weight
• 4.5 Kilograms (kg)

• Automation Grade
• Manual

• Cable Type
• Armoured / Unarmoured Cable

• Circuit Type
• Control Circuit

• Color
• Grey Body / Red Push Button

• Conductor
• Copper

• Contact Resistance
• Not Specified Volt per ampere (V/A)

• Current Rating
• 10 A

• Display Type
• Not Applicable

• Features
• Flameproof Ex d, M20 Cable Entry, Mushroom STOP Push Button, Silver Alloy Contacts, Corrosion Resistant, Heavy Duty Construction

• Finish Type
• Epoxy Powder Coated

• Frequency
• 50/60 Hertz (HZ)

• Insulation Resistance
• Not Specified

• Material
• Cast Aluminium Alloy

• Max. Current
• 10 A Ampere (amp)

• Max. Voltage
• 690 V AC Volt (V)

• Mechanical Life
• 100,000 Operations Days

• Mounting Type
• Wall Mount

• No Of Poles
• 1 Pole

• Number of Module
• 1

• Operating Temperature
• -20 C to +55 C Celsius (oC)

• Phase
• Single Phase

• Power Rating
• Not Applicable

• Product Type
• Explosion Proof Push Button Control Station

• Protection Level
• Flameproof Ex d

• Rated Current
• 10 A Ampere (amp)

• Rated Voltage
• 690 V AC Volt (V)

• Response Time
• Instantaneous Seconds

• Size
• 250 146 116 mm

• Stoke
• Mushroom Push Button

• Temperature Range
• -20 C to +55 C Celsius (oC)

• Usage & Applications
• Oil & Gas, Petrochemical, Chemical, Offshore, Pharmaceutical, Hazardous Areas

• Warranty
• 1 Year

• Weight
• 4.5 Kilograms (kg)

• Automation Grade
• Automatic

• Cable Type
• Two-Conductor Twisted Pair Cable

• Circuit Type
• Two-Wire Digital Communication

• Color
• Safety Orange (Wall Mount Models)

• Conductor
• Two-Conductor Twisted Pair

• Contact Resistance
• not specified Volt per ampere (V/A)

• Current Rating
• Not applicable

• Display Type
• LED Status Indicator

• Features
• Hands-Free Communication, 16-Key Keypad, Group Calling, All Call, Noise Cancelling, Configurable Inputs & Outputs, Headset Support, High Noise Area Operation

• Finish Type
• Powder Coated / Painted

• Frequency
• 60 Hertz (HZ)

• Insulation Resistance
• Not Specified

• Material
• Cast Aluminum / Stainless Steel

• Max. Current
• Not Specified Ampere (amp)

• Max. Voltage
• 24 V AC / 24 V DC Volt (V)

• Mechanical Life
• Not Specified Seconds

• Mounting Type
• Surface Mount / Flush Mount

• No Of Poles
• not specified

• Number of Module
• Single Module

• Operating Temperature
• -20 C to +60 C Celsius (oC)

• Phase
• 30 W Max (24 VAC) / 29 W Max (24 VDC)

• Power Rating
• Industrial Communication, Hazardous Areas, Oil & Gas, Chemical Plants, Marine, Power Plants

• Product Type
• 24 V AC / 24 V DC

• Protection Level
• Not Specified

• Rated Current
• not specified Ampere (amp)

• Rated Voltage
• Not Specified Volt (V)

• Response Time
• instent Seconds

• Size
• 241.3 203.2 101.6 mm (Wall Mount Models)

• Stoke
• not Applicable

• Temperature Range
• -20 C to +60 C Celsius (oC)

• Usage & Applications
• Industrial Communication, Hazardous Areas, Oil & Gas, Chemical Plants, Marine, Power Plants

• Warranty
• Manufacturer Standard Warranty

• Weight
• 3.6 Kilograms (kg)
