Explosion Proof Extra-Low Voltage Wall-Mounting Switch & Sockets

Send Inquiry

Request To Call Back

Explosion Proof Extra-Low Voltage Wall-Mounting Switch & Sockets

Name: Explosion Proof Extra-Low Voltage Wall-Mounting Switch & Sockets
Brand: QANDS SERVICES AND TECHNOLOGIES LLP
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Explosion Proof Extra-Low Voltage Wall-Mounting Switch & Sockets Specification

Cable Diameter
1-17 Meter (m)

Surface Treatment
Other

Thickness
Not Specified Inch

Application
Other

Product Type
Other

Power Rating
Up to 400 VA

Contact Resistance
Not Specified Volt per ampere (V/A)

Insulation Resistance
Not Specified

Diameter
Not Specified Inch (in)

Terminal Socket
3 Pole

Style
Wall Mount

Fittings
M25 Cable Entry, Rotary Switch, Locking Device

Rated Voltage
20 25 V AC Volt (V)

Usage & Applications
Oil & Gas, Chemical Plants, Petrochemical Industries, Offshore Platforms, Refineries, Hazardous Areas

Operating Temperature
-50 C to +60 C Celsius (oC)

Weight
0.3 Kilograms (kg)

Cable Type
Solid

Color
Pink

Phase
Single Phase

Warranty
1 Year

Display Type
No Display

Material
Glass Fibre Reinforced Polyamide

Frequency
60 Hertz (HZ)

Rated Current
16 Ampere (amp)

Features
Explosion Proof, IP66 Protection, Compact Design, Integrated Rotary Switch, Mechanical Locking Device, Self-Cleaning Contacts, Chemical Resistant

Conductor
Copper

Explosion Proof Extra-Low Voltage Wall-Mounting Switch & Sockets Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Explosion Proof Extra-Low Voltage Wall-Mounting Switch & Sockets

Product Description

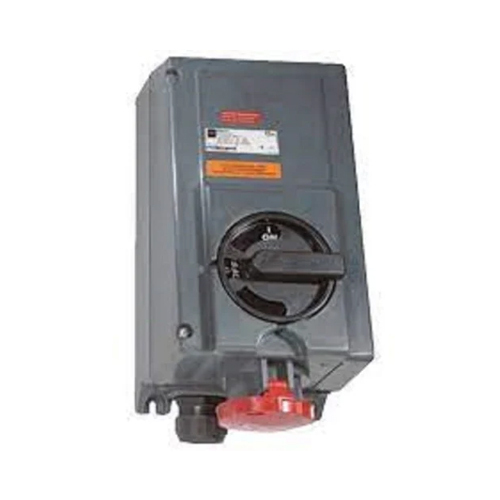

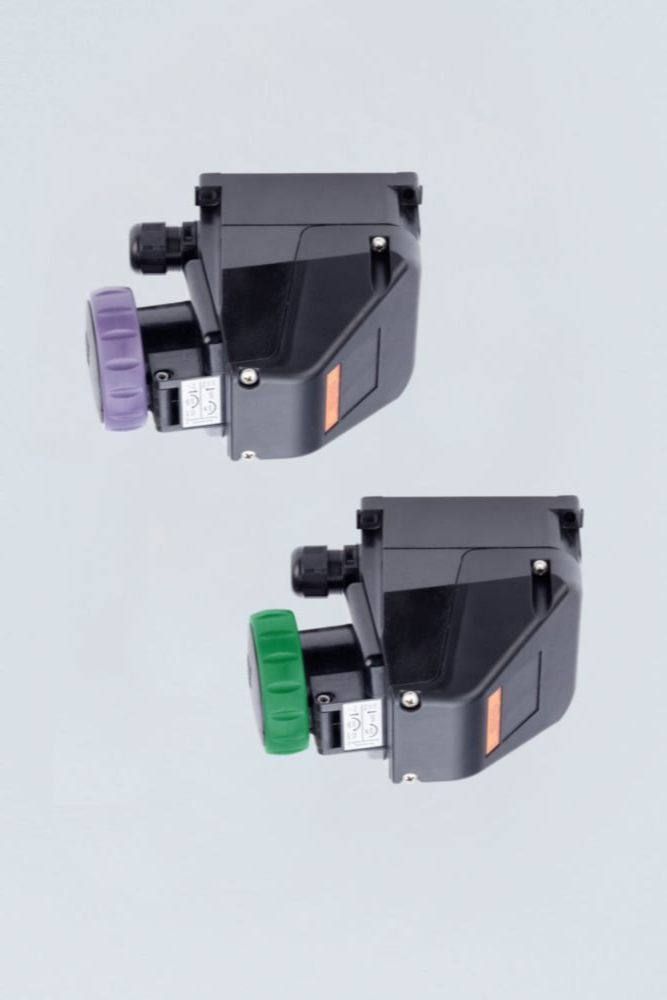

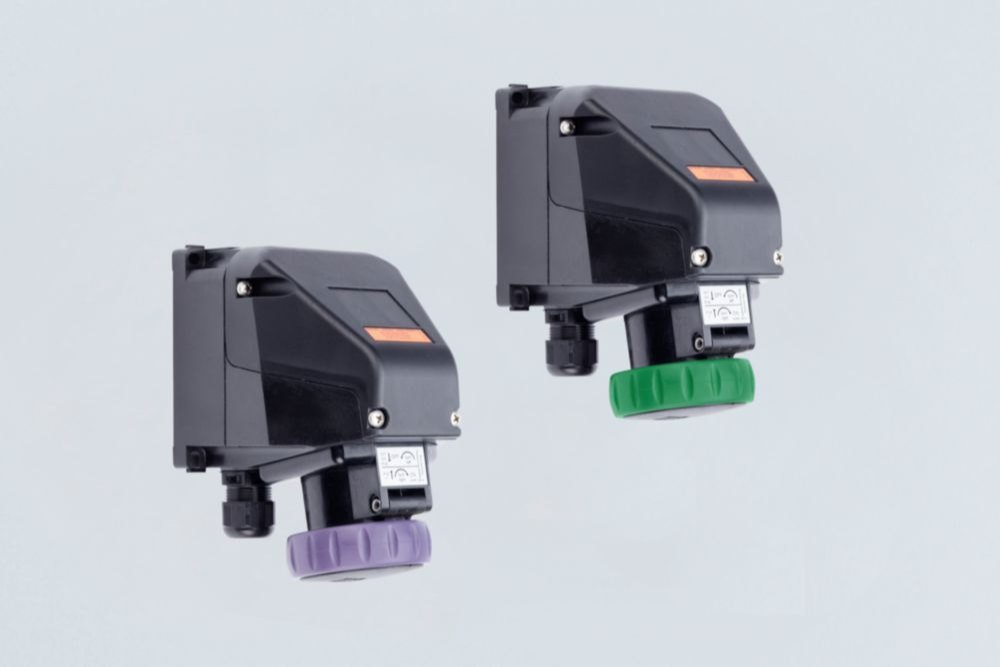

The R. STAHL SolConeX 8573/13-300 Extra Low Voltage Wall Mounting Socket is a compact and reliable explosion-protected socket designed for safe electrical connections in hazardous industrial environments. Engineered for extra-low voltage applications (2025V AC), this socket delivers dependable performance while ensuring maximum safety in areas where explosive gases or combustible dust may be present.
Manufactured from glass fibre reinforced polyamide, the socket provides excellent mechanical strength, chemical resistance, and long service life. Its IP66 enclosure protects against dust and powerful water jets, making it ideal for both indoor and outdoor industrial installations. The integrated rotary switch and locking mechanism prevent disconnection under load, while self-cleaning lamellar contacts ensure reliable electrical performance over time.

Features

ATEX & IECEx certified explosion-protected wall mounting socket.

Suitable for Zone 1, Zone 2, Zone 21 & Zone 22 hazardous areas.

Designed for 2025V AC extra-low voltage applications.

Supports 10A and 16A operating current.

Rugged glass fibre reinforced polyamide enclosure.

IP66 protection against dust and water ingress.

Compact wall-mounted design for easy installation.

Integrated rotary switch with mechanical locking device.

Self-cleaning lamellar contacts for reliable electrical connection.

High mechanical impact and shock resistance.

Excellent resistance to chemicals and harsh industrial environments.

Wide operating temperature range from -50C to +60C (depending on current rating).

Compatible with existing R. STAHL Series 8575 plugs.

Available with 3-pole (3P) configuration.

Ideal for oil & gas, chemical, petrochemical, offshore and hazardous industrial installations.

Explosion Proof Safety for Hazardous Environments

Engineered to deliver uncompromising safety, these wall-mounted switches and sockets are certified for use in potentially explosive atmospheres, including oil & gas, petrochemical, offshore, and pharmaceutical sites. Suitable for Zone 1, Zone 2, Zone 21, and Zone 22, they provide extra-low voltage connectivity while minimizing risks of sparks or accidental ignition.

Durable, Chemical-Resistant Construction

Crafted from high-quality PVC and glass fibre reinforced polyamide, this product resists harsh chemicals and withstands extreme temperatures ranging from -50C to +60C. Its IP66-rated enclosure ensures protection from dust and water ingress, making it suitable for strenuous industrial environments where reliability is paramount.

Practical Features and Versatile Installation

Designed with a compact footprint, M25 cable entry, and a rotary switch with a mechanical locking device, this unit is both easy to install and operate. The three-pole terminal socket supports solid copper cables, while self-cleaning contacts ensure ongoing optimal performance with minimal maintenance.

FAQ's of Explosion Proof Extra-Low Voltage Wall-Mounting Switch & Sockets:

Q: How do I install the explosion proof wall-mounting switch and socket in hazardous areas?

A: Installation should be conducted by qualified professionals. The product features an M25 cable entry suitable for solid copper wires. Mount it securely on the wall, ensuring proper sealing for IP66 protection, and connect cables according to the single-phase, extra-low voltage ratings specified for your application.

Q: What makes this wall-mounting switch and socket suitable for hazardous areas such as oil & gas and chemical plants?

A: The unit's explosion proof rating, chemical-resistant materials, and IP66 enclosure prevent accidental ignition of flammable gases or dust. It is certified for use in Zone 1, Zone 2, Zone 21, and Zone 22, providing a safe solution for hazardous industrial settings.

Q: Where can this product be used, and what applications is it best suited for?

A: This switch and socket assembly excels in oil & gas facilities, chemical and petrochemical industries, offshore platforms, refineries, and other hazardous environments that require extra-low voltage connections. Its robust protections and durable construction ensure dependable performance in these challenging locations.

Q: What is the benefit of the rotary switch and mechanical locking device?

A: The integrated rotary switch enables straightforward circuit switching, while the mechanical locking device prevents unauthorized or accidental operation, thus enhancing safety during use and maintenance.

Q: What is the warranty period for this explosion proof switch and socket?

A: The product is backed by a one-year warranty, covering manufacturing defects and ensuring customer peace of mind regarding quality and performance.

Q: How does the product ensure reliable operation over time?

A: Self-cleaning contacts reduce the buildup of contaminants, and chemical resistant materials protect against corrosion, guaranteeing prolonged, maintenance-friendly functionality even in harsh industrial environments.
