Fanless Panel Pc Touch Screen

Name: Fanless Panel Pc Touch Screen
Brand: QANDS SERVICES AND TECHNOLOGIES LLP
Price: 300000.0 INR
Availability: InStock

Price 300000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fanless Panel Pc Touch Screen Specification

Screen Size
15 Inch Inch (in)

Processor Type
Intel Core 11th Generation

Screen Resolution
1024 768 (XGA)

Weight
5.4 Kilograms (kg)

Bluetooth
Yes

Camera
Other

Processor Main Frequency
1.8 GHz (i7) / 1.5 GHz (i5) / 2.2 GHz (i3) Hertz (HZ)

Cache
12 MB (i7) / 8 MB (i5) / 6 MB (i3)

Monitor
LCD

CPU
Intel Core i7-1185G7E / i5-1145G7E / i3-1115G4E (11th Gen)

Chipset
Not Specified

Graphics
OTher

Memory
Up to 64 GB DDR4 (2 SODIMM) byte (B)

Memory Speed
DDR4 3200 MHz

Memory Upgradable upto
Yes byte (B)

HDD
1 2.5" SATA Bay + M.2 NVMe/SATA SSD Support byte (B)

LAN
Dual Intel I226LM 2.5 Gigabit Ethernet

Mouse
Other

OS
indows 10 IoT LTSC (64-bit), Windows 11, Linux

Connectivity Options
Dual 2.5GbE LAN, USB, HDMI, DisplayPort, Serial Ports

Warranty Period
1 Year

Fanless Panel Pc Touch Screen Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

Fanless Panel Pc Touch Screen About

Description

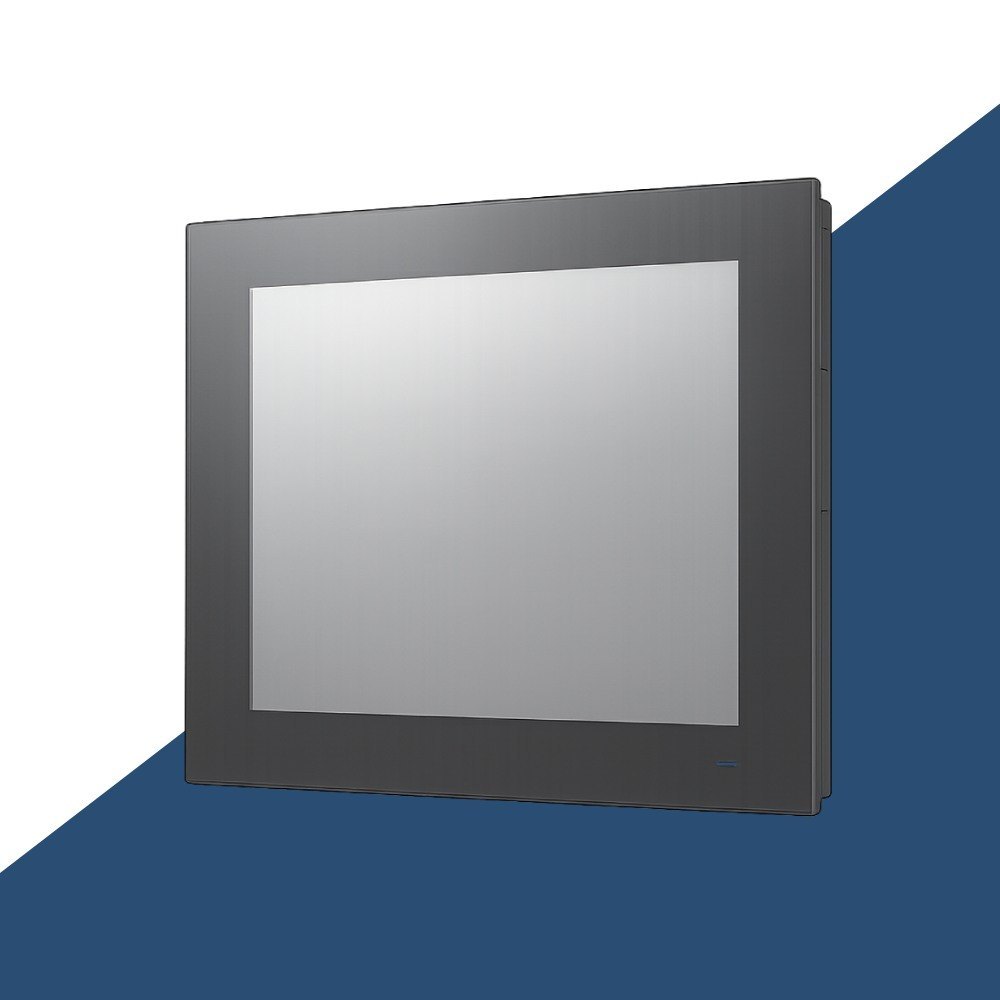

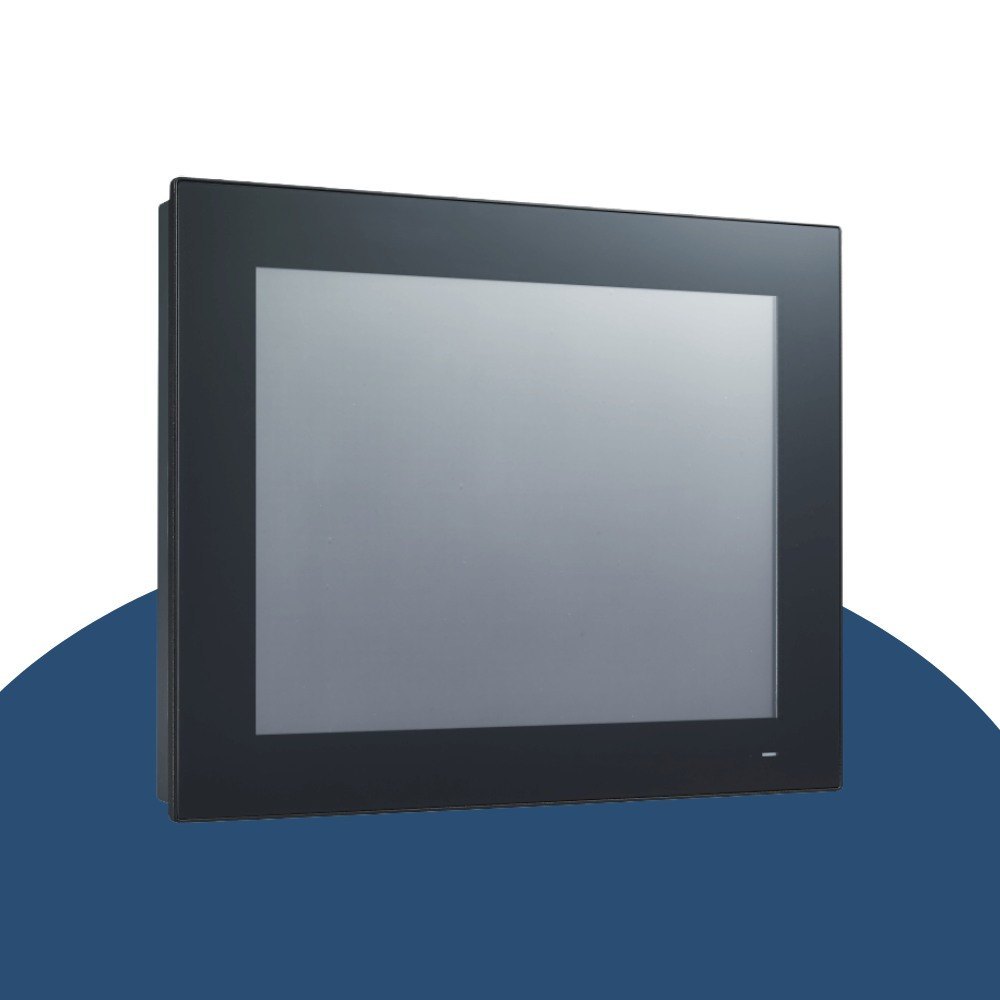

The Advantech PPC-415 TGL is a 15-inch fanless industrial panel PC featuring Intel 11th Gen Core processors, a multi-touch TFT LCD display, IP66 front panel protection, wide 932 VDC input, dual 2.5GbE LAN, and VESA mounting. It is ideal for industrial automation, machine control, HMI, and factory applications.

Key Features

15-inch XGA TFT LCD touchscreen

Intel 11th Gen Core i7/i5/i3 processors

Completely fanless industrial design

Projected capacitive 10-point multi-touch

Dual 2.5 Gigabit Ethernet with TSN

Wide 932 VDC power input

IP66-rated front panel

Supports Windows 10 IoT, Windows 11 & Linux

Up to 64 GB DDR4 RAM

HDMI & DisplayPort outputs

Supports three independent displays

PCIe & PCI expansion slots

TPM 2.0 hardware security

VESA, panel, wall and desktop mounting

Industrial-grade aluminum alloy front bezel

M.2 NVMe/SATA storage support

Designed for HMI and industrial automation

Reliable 24/7 industrial performance

Efficient Fanless Design

Built without a fan, this Panel PC operates quietly and reliably, making it ideal for environments sensitive to dust or noise. The passive cooling system coupled with an 11th Gen Intel Core processor ensures stable performance even under extended workloads.

Robust Touch Screen and Display

The 15-inch LCD provides a responsive touch experience with a 1024x768 XGA resolution. Its high-quality display supports various industrial monitoring, control, and data input applications, offering clarity and intuitive operation every time.

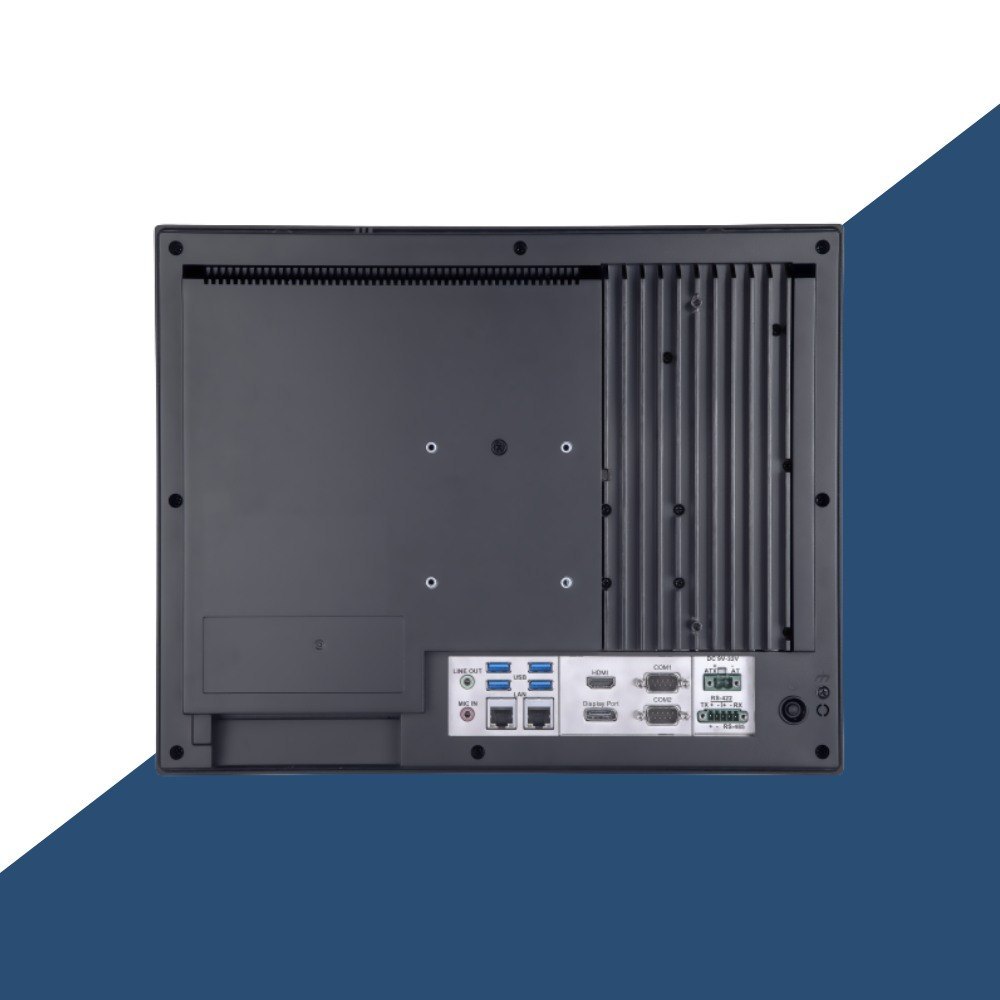

Comprehensive Connectivity

Equipped with dual 2.5GbE LAN ports, multiple USB ports, HDMI, DisplayPort, and serial interfaces, this panel PC integrates easily with existing equipment or new installations, maximizing data transfer speeds and peripheral compatibility.

FAQ's of Fanless Panel Pc Touch Screen:

Q: How do I upgrade the memory or storage on the Fanless Panel PC Touch Screen?

A: Memory and storage upgrades are straightforward, thanks to accessible internal bays and slots. The system supports up to 64 GB DDR4 via two SODIMM slots, and you can add storage using the 2.5" SATA bay or the M.2 NVMe/SATA SSD slot. Please ensure the PC is powered off before performing upgrades.

Q: What operating systems can I use with this panel PC?

A: This fanless panel PC is compatible with Windows 10 IoT LTSC (64-bit), Windows 11, and various Linux distributions, allowing you to choose the most suitable OS for your application needs.

Q: When is it beneficial to use a fanless panel PC versus a traditional one?

A: Fanless panel PCs are particularly advantageous in settings where dust, debris, or noise must be minimized, such as clean rooms or noise-sensitive areas. Their passive cooling design also reduces maintenance needs and enhances reliability.

Q: Where can these Panel PCs be installed?

A: Thanks to their robust design and versatile connectivity, these panel PCs suit industrial automation, kiosks, control panels, retail environments, and more. Their slim profile allows for easy panel or wall mounting in space-constrained locations.

Q: What is the process to connect external devices like printers or barcode scanners?

A: Connecting external devices is simple with available USB, serial, HDMI, and DisplayPort interfaces. Just plug in your peripheral, and, if necessary, install the appropriate drivers for seamless integration.

Q: What are the primary benefits of using this fanless panel PC touch screen?

A: Benefits include silent operation, reduced maintenance, flexible OS compatibility, high-performance 11th Gen processors, upgradeable memory and storage, and a durable touch screen suited for demanding commercial and industrial use cases.
